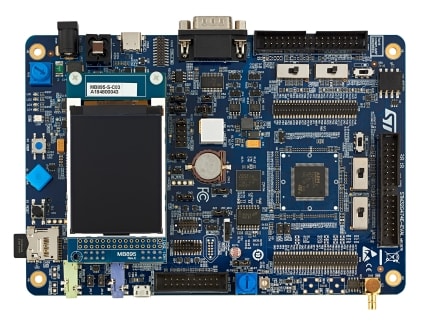

  • The STM32G474E-EVAL board is a complete demonstration and development platform for the STMicroelectronics Arm® Cortex®-M4 core-based STM32G474QET6U microcontroller, designed to make user application development easier.

    STM32G484E-EVAL features the STM32G484QET6U MCU with cryptography.
    STM32G474E-EVAL1 features a motor-control configuration board.
    The full range of hardware features available on the board helps the users to improve application development to evaluate all the peripherals (USB FS, UCPD, USART, Audio, ADC and DAC, differential ADC, TFT LCD, Potentiometer/LDR, SRAM, Quad-SPI Flash memory device, microSD™ card, Smartcard, FDCAN transceiver, High Brightness LED, motor-control connectors, temperature sensor, and others). Extension headers provide easy connection to daughterboard, for specific applications.
    The board features STLINK-V3E as the embedded in-circuit debugger and programmer, for the STM32 MCU and the USB virtual COM port bridge.

    主な特徴

    • Common features
      • 240x320 TFT color LCD display module with SPI interface
      • 16-Gbyte microSD™ card bundled
      • On-board current measurement
      • SAI audio codec
      • Temperature sensor
      • 8-Mbit (512 K x 16-bit) SRAM
      • Two 512-Mbit Quad-SPI NOR Flash memories
      • Four color user LEDs
      • One high brightness LED
      • Reset and wake-up / tamper buttons
      • 4-direction joystick with selection button
      • Light-dependent resistor (LDR)
      • Potentiometer
      • Access to comparator and operational amplifier
      • Board connectors:Analog line input jackStereo headset jackTwo connectors for external speakersmicroSD™ cardEXT_I2C connector supporting I²C busRS-232 port configurable for communication or MCU flashingRS-485 portUSB Type-C™ port supporting USB FS DeviceTwo CAN 2.0A/B-compliant portsConnector for DAC outputJTAG/SWD connectorETM trace debug connectorUser interface through USB virtual COM portEmbedded STLINK-V3E debug and flashing facilityTAG connector 10-pin footprintArm® Cortex® 10-pin 1.27 mm-pitch debug connector over STDC14 footprintCoin cell battery holder
      • Board expansion connectors:Two sets of motor control expansion connectorsBoard expansion extension connectors
      • Flexible power-supply options:ST-LINK USB VBUS, external sources, USB Type-C™ connector, or daughterboard
      • On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
      • Microcontroller supply voltage: fixed 3.3 V or adjustable range from 1.62 V to 3.6 V
      • Comprehensive free software libraries and examples available with the STM32CubeG4 MCU Package
      • Support of a wide choice of integrated development environments (IDEs) including IAR™, Keil®, GCC-based IDEs
    • Board-specific features
      • STM32G474QET6U microcontroller with 512 Kbytes of Flash memory and 96 Kbytes of RAM in LQFP128 package (STM32G474E-EVAL and STM32G474E-EVAL1)
      • STM32G474E-EVAL1 is the board to use for motor control application with solder bridge and resistor configuration
      • STM32G484QET6U with cryptography (STM32G484E-EVAL)
    • Fully compatible with all microcontrollers of the STM32G4x1 and STM32G4x3 lines with "QET6" part number suffix
