Industrial pressure sensor with dual full-scale and Qvar


Dual full-scale selectable pressure range and Qvar technology in an industrial MEMS pressure sensor

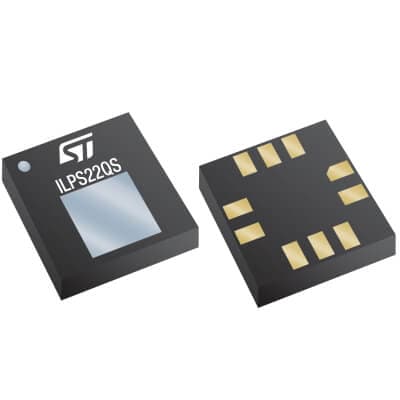

The ILPS22QS is an ultra-compact piezoresistive absolute pressure sensor for industrial applications that behaves as a digital output barometer. It is the first industrial ST pressure sensor supporting a selectable dual full-scale pressure range up to 1260 hPa or 4060 hPa.

Thanks to its full-molded package consisting of 6 small vent holes, a suspended membrane, and a silicon cap, it is ideal for measuring air pressure and for smart filter maintenance in industrial applications involving extended temperature ranges up to 105°C.

The ILPS22QS embeds analog hub sensing used to implement the Qvar technology, which is critical for water leakage detection.

Key features of ILPS22QS

  • Dual full-scale absolute pressure selectable up to 1260 hPa or 4060 hPa
  • Wide operating temperature -40°C–105°C
  • High accuracy and resolution
  • Embedded temperature compensation
  • Low power consumption and low noise
  • Qvar sensor embedded
  • 8 different ODR support from 1HZ to 200HZ
  • Unique full-molded package with small vent holes and a suspended membrane

Application examples

industrial applications Industrial applications
gas and water metering Gas and water metering
weather station equipment Weather station equipment
altimeter/barometer for outdoor applications Altimeter/barometer for outdoor applications
hvac and smart filters HVAC and smart filters

Recommended resources

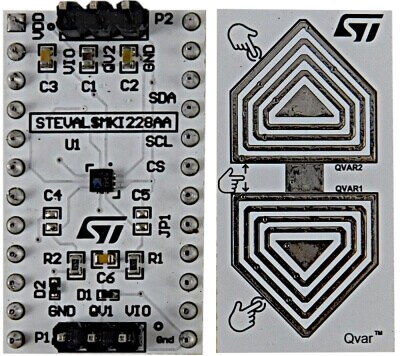

steval mki228ka

Pressure sensor kit with Qvar functionality based on ILPS22QS

steval mki109v3

ST MEMS adapters motherboard based on the STM32F401VE and compatible with all ST MEMS adapters.

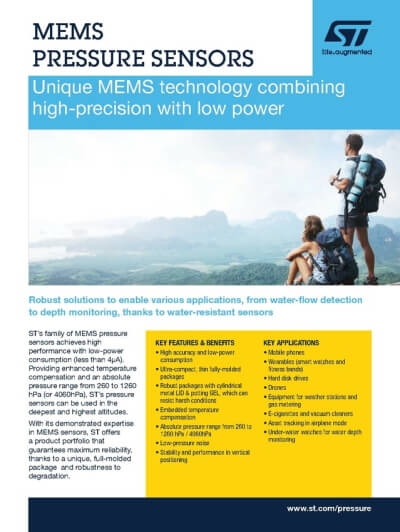

pdf mems pressure sensors

Unique MEMS technology combining high-precision with low power.

webinar mems pressure sensors

In this 1-hour webinar, you will learn about our MEMS pressure sensor features, performance, and use-cases, enabling you to select the most compatible device for your next application.

  • An overview of the MEMS piezoresistive technology for absolute pressure sensors
  • The relevant parameters for pressure sensors selection
  • Dust-resistant or water-resistant package options to fit your end application
  • An overview of ST's pressure sensors portfolio with application examples
  • System level power consumption efficiency using a pressure sensor
