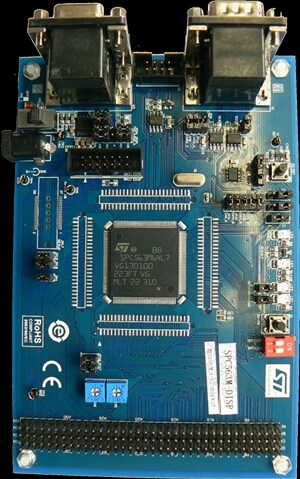

  • The SPC56M-DIS Discovery+ kit helps to discover SPC56 M line Power Architecture®Microcontrollers with full access to CPUs, GPI/O's and peripherals such as CAN, UART, JTAG, K-Line, LIN at budget price.

    Free ready-to-run application firmware examples are available inside SPC5Studio to support quick evaluation and development.
    SPC5Studio includes visual configurable code generation engine, board support package (BSP), startup routines, interrupt services, free RTOS (optional) and a full set of low level drivers. SPC5Studio includes Hightec GNU "C" compiler, with a 30-days full free trial license. SPC5Studio is available for free download.
    The SPC56 M line is designed to address cost sensitive powertrain and transmission applications.
    The SPC56M key functionality is Time processing units (eTPU) a coprocessor to create events in sync with internal or external signals without flooding the CPU with interrupt to serve.
    An E2E Community is available on ST WEB to get ST experts support in getting started quickly with SPC56 microcontrollers.

    主な特徴

    • SPC563M64L7 32-bit Power Architecture®Book E compliant e200z335 CPU core, 1.5Mbyte on-chip in an LQFP176 package.
    • Board Supply: Single 5VDC external power supply input.
    • All GPIOs and DSPI/uSB signals accessible by a 4x36 100mil pin grid array allowing connection of an additional boards for dedicated applications.
    • JTAG interface (7x2 male 100mil)
    • 2 high speed CAN interface (DB9 male)
    • 2 eSCI interface (DB9 female) or 1
    • SCI interface + 1 K-LINE interface.
    • 2 deserial serial peripheral interface (DSPI) modules (compatible with Microsecond Bus)
    • 1 Optional high speed Nexus interface
    • 4 LEDs: LE3 for 5 V power on,LE4 for Reset, LE1 and LE2 for GPIO99 and GPIO98 (for user)
    • 12MHz crystal.
    • 2 potentiometers for ADC quick evaluation
    • Reset push button.
    • Board size 145 x 97.5mm

サンプル & 購入

製品型番
製品ステータス
概算価格(USS)
数量
Specific features
ECCN (US)
Country of Origin
WEEE Compliant
販売代理店からオーダー
STからオーダー
SPC563M-DISP
Active
106.0 1 - EAR99 - - 在庫チェック

Distributor availability ofSPC563M-DISP

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now
MOUSER WORLDWIDE 5 1 Order Now

代理店レポートによる在庫データ: 2019-09-22

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

MOUSER

在庫

5

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-09-22

購入

SPC563M-DISP

製品ステータス

アクティブ

Unit Price (US$)

106

Unit Price (US$)

106.0*

Distributor availability ofSPC563M-DISP

代理店名
地域 在庫 最小発注 Third party link
DIGIKEY WORLDWIDE 10 1 Order Now
MOUSER WORLDWIDE 5 1 Order Now

代理店レポートによる在庫データ: 2019-09-22

代理店名

DIGIKEY

在庫

10

Min.Order

1

地域

WORLDWIDE Order Now

MOUSER

在庫

5

Min.Order

1

地域

WORLDWIDE Order Now

代理店レポートによる在庫データ: 2019-09-22

数量

1

Specific features

-

ECCN (US)

EAR99

Country of Origin

-

WEEE Compliant

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

推奨コンテンツ

開発ツール・ハードウェア

    • 製品型番

      Code Generator, Quick resources configurator and Eclipse development environment for SPC5 MCUs

      SPC5-UDESTK Debugging Software for Windows

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 バージョン サイズ アクション
      DB2094
      SPC563M-DISP: Discovery+ evaluation board
      2.0
      106.24 KB
      PDF
      DB2094

      SPC563M-DISP: Discovery+ evaluation board

    • 概要 バージョン サイズ アクション
      AN4425
      Getting started with SPC563M-DISP discovery board
      2.0
      477.56 KB
      PDF
      AN4425

      Getting started with SPC563M-DISP discovery board

    • 概要 バージョン サイズ アクション
      UM1699
      SPC563M-DISP Discovery+ evaluation board
      2.0
      3.73 MB
      PDF
      UM1699

      SPC563M-DISP Discovery+ evaluation board

ハードウェアリソース

    • 概要 バージョン サイズ アクション
      SPC56M-Discovery BOM 1.0
      1.52 KB
      ZIP
      SPC56M-Discovery gerber files 1.0
      189.11 KB
      ZIP

      SPC56M-Discovery BOM

      SPC56M-Discovery gerber files

    • 概要 バージョン サイズ アクション
      SPC563M-DISP schematic
      376.23 KB
      PDF

      SPC563M-DISP schematic

法務

    • 概要 バージョン サイズ アクション
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

    • Combining the SPC56M-Discovery board and EVAL-L9177A evaluation board with related Graphical User Interface (GUI) STSW-L9177A, you can easily evaluate your Small EMS for 2- and 3-wheeled wheeled road vehicles (up to 2 cylinders). These solutions can also be used for non-road equipment such as power generators, lawn mowers and snow blowers.
      Solution Components
      製品型番 概要 ステータス Core Products Price (US$)*
      Order / Download
      Buy All
      EVAL-L9177A

      Key features

      • Voltage min/max: 3.9 V to 30 V.
      • No. channels:
        • 2 injector driver
        • 1 Lambda sensor heater
        • 3 relay driver
        • 1 LED/Lamp driver
        • Tachometer driver
        • Stepper motor driver
        • 1 Protected High side dirver
      • Device registers setting and the full diagnostic are available through SPI.
      • Communication protocols: SPI, Kline.
      • Access to all relevant pins by test points.
      • Input signal connector compatible with the SPC563M-DISP (SPC563M64L Discovery+ evaluation board).
      • Possibility to connect a generic microcontroller boards by using a simple adapter.
      • Package: TQFP-64

      続きを読む

      Evaluation board for L9177A
      Active
      L97177A 104.13 購入
      SPC56M-Discovery

      Key features

      • SPC563M64L7 32-bit Power Architecture® Book E compliant e200z335 CPU core, 1.5Mbyte on-chip in an LQFP176 package.
      • Board Supply: Single 5VDC external power supply input.
      • All GPIOs and DSPI/uSB signals accessible by a 4x36 100mil pin grid array allowing connection of an additional boards for dedicated applications.
      • JTAG interface (7x2 male 100mil)
      • 2 high speed CAN interface (DB9 male)
      • 2 eSCI interface (DB9 female) or 1
      • SCI interface + 1 K-LINE interface.
      • 2 deserial serial peripheral interface (DSPI) modules (compatible with Microsecond Bus)
      • 1 Optional high speed Nexus interface
      • 4 LEDs: LE3 for 5 V power on,LE4 for Reset, LE1 and LE2 for GPIO99 and GPIO98 (for user)
      • 12MHz crystal.
      • 2 potentiometers for ADC quick evaluation
      • Reset push button.
      • Board size 145 x 97.5mm

      続きを読む


      SPC56M-Discovery
      SPC56M-Discovery

      注目リソース

      schematics gerber
      Discovery Plus Kit for SPC56 M line - with SPC563M64L7 MCU
      Active
      93.10 購入
      STSW-L9177A

      Key features

      • Connection with microcontroller by RS232 port
      • Automatic COM connection
      • L9177A SPI register read and write
      • Capability to generate programmable durationactuations
      • Possibility to control L9177A parallel actuation.

      続きを読む

      EVAL-L9177A Graphical User Interface
      Active
      -
      ソフトウェア
      製品型番 Software Version 製品ステータス サプライヤ ダウンロード
      STSW-L9177A 1.0.0 Active ST
      EVAL-L9177A

      説明 :

      Evaluation board for L9177A

      Price (US$)*

      104.13

      Key features

      • Voltage min/max: 3.9 V to 30 V.
      • No. channels:
        • 2 injector driver
        • 1 Lambda sensor heater
        • 3 relay driver
        • 1 LED/Lamp driver
        • Tachometer driver
        • Stepper motor driver
        • 1 Protected High side dirver
      • Device registers setting and the full diagnostic are available through SPI.
      • Communication protocols: SPI, Kline.
      • Access to all relevant pins by test points.
      • Input signal connector compatible with the SPC563M-DISP (SPC563M64L Discovery+ evaluation board).
      • Possibility to connect a generic microcontroller boards by using a simple adapter.
      • Package: TQFP-64

      続きを読む

      SPC56M-Discovery

      説明 :

      Discovery Plus Kit for SPC56 M line - with SPC563M64L7 MCU

      Price (US$)*

      93.10

      Key features

      • SPC563M64L7 32-bit Power Architecture® Book E compliant e200z335 CPU core, 1.5Mbyte on-chip in an LQFP176 package.
      • Board Supply: Single 5VDC external power supply input.
      • All GPIOs and DSPI/uSB signals accessible by a 4x36 100mil pin grid array allowing connection of an additional boards for dedicated applications.
      • JTAG interface (7x2 male 100mil)
      • 2 high speed CAN interface (DB9 male)
      • 2 eSCI interface (DB9 female) or 1
      • SCI interface + 1 K-LINE interface.
      • 2 deserial serial peripheral interface (DSPI) modules (compatible with Microsecond Bus)
      • 1 Optional high speed Nexus interface
      • 4 LEDs: LE3 for 5 V power on,LE4 for Reset, LE1 and LE2 for GPIO99 and GPIO98 (for user)
      • 12MHz crystal.
      • 2 potentiometers for ADC quick evaluation
      • Reset push button.
      • Board size 145 x 97.5mm

      続きを読む


      SPC56M-Discovery
      SPC56M-Discovery

      注目リソース

      schematics gerber
      STSW-L9177A

      説明 :

      EVAL-L9177A Graphical User Interface

      Price (US$)*

      -
      ソフトウェア

      Key features

      • Connection with microcontroller by RS232 port
      • Automatic COM connection
      • L9177A SPI register read and write
      • Capability to generate programmable durationactuations
      • Possibility to control L9177A parallel actuation.

      続きを読む

      製品型番 Software Version 製品ステータス サプライヤ ダウンロード
      STSW-L9177A 1.0.0 Active ST

製品型番 製品ステータス RoHSコンプライアンスグレード 材料宣誓書**
SPC563M-DISP
Active
Ecopack1

SPC563M-DISP

Package:

Ecopack1

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
