  • STBLESensor application is available for Android and iOS and shows the data exported by a BLE device using the BlueST protocol.

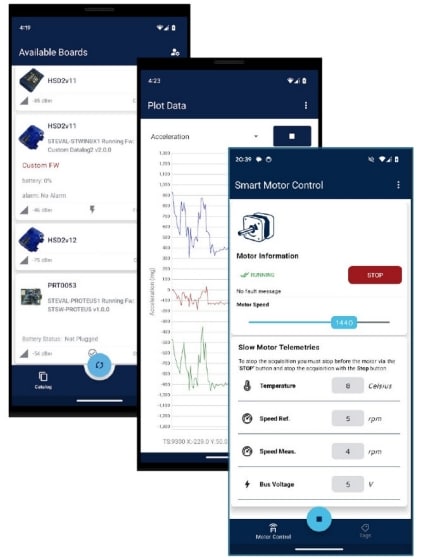

    The app shows different panels based on the data types exported by the firmware, including: environmental data, MEMS sensor fusion, plot, activity recognition, carry position, acceleration event, BlueVoice, speech to text, beamforming, sound source localization, pedometer, switch, motion intensity, compass, cloud logging, node status.
    All the data received by the app can be logged in CVS files and exported by e-mail.
    If the firmware supports the functionality, the application can also show a serial console to exchange string messages with the board. This functionality is also used to upgrade the board firmware.
    Both Android and iOS applications support the Bluetooth secure pairing with pin.
    For Android it is also possible to use an NFC tag to read the pin and trigger the connection with the node.

    Key Features

    • Sensor data reception and command transmission over Bluetooth Low Energy (BLE)
    • Support for multiple STM32Cube function packs and boards
    • Available on Android and iOS app stores
    • Cross-platform user interface and functionality
    • Based on BlueST-SDK library
    • Data logging support
    • Data plotting support
    • Included serial console (stdout/stdin/stderr) over Bluetooth
    • Secure pairing (with pin) support
    • Data publishing on the cloud support

Get Software

Recommended for you

Embedded Software

    • Part Number

      Embedded software samples for SensorTile, including sensor data streaming via USB and BLE, data logging on SD card, audio acquisition and playback

      Bluetooth low energy, MEMS sensors and battery management firmware for wearable applications

    • Part Number

      STM32Cube function pack for ultra-low power IoT node with artificial intelligence (AI) application based on audio and motion sensing

      STM32Cube function pack for full-duplex voice streaming over Bluetooth low energy using Opus compression

      STM32Cube function pack for STM32WB MCU featuring full-duplex audio streaming over Bluetooth 5.0 using Opus codec

      STM32Cube function pack for multi sensors node with signal processing to enable predictive maintenance

      STM32 ODE function pack for IoT node with BLE connectivity, digital microphone, environmental and motion sensors

      STM32Cube function pack for ultra-low power IoT node with BLE connectivity, digital microphone, environmental and motion sensors

      STM32Cube function pack for IoT node with NFC, BLE connectivity and environmental, motion and time-of-flight sensors

      STM32Cube function pack for IoT node with BLE connectivity and environmental and motion sensors

      STM32Cube function pack for STM32WB with BLE connectivity and environmental and motion sensors

      STM32Cube function pack for the Pro Mode of the SensorTile.box wireless multi sensor development kit

    • Part Number

      Bluetooth Low Energy and Sensors Technology Software Development Kit (SDK)

Evaluation Tools

    • Part Number

      SensorTile.box wireless multi sensor development kit with user friendly app for IoT and wearable sensor applications

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3756
      BLE sensor application for Android and iOS
      2.0
      833.78 KB
      PDF
      DB3756

      BLE sensor application for Android and iOS

    • Description Version Size Action
      UM2499
      Getting started with the STBLESensor application
      2.0
      1.73 MB
      PDF
      UM2499

      Getting started with the STBLESensor application
