Motor control discovery kit with STDRIVE101 three-phase gate driver and the STL8N10F7 power MOSFETs

Download databrief Order Direct

Product overview

Description

The STEVAL-LVLP01 discovery kit is a part of the motor-control development platform, which is supporting ZeST and HSO algorithms. It could be connected to B-G473E-ZEST1S, the STM32 control board, through the motor control connector V2.

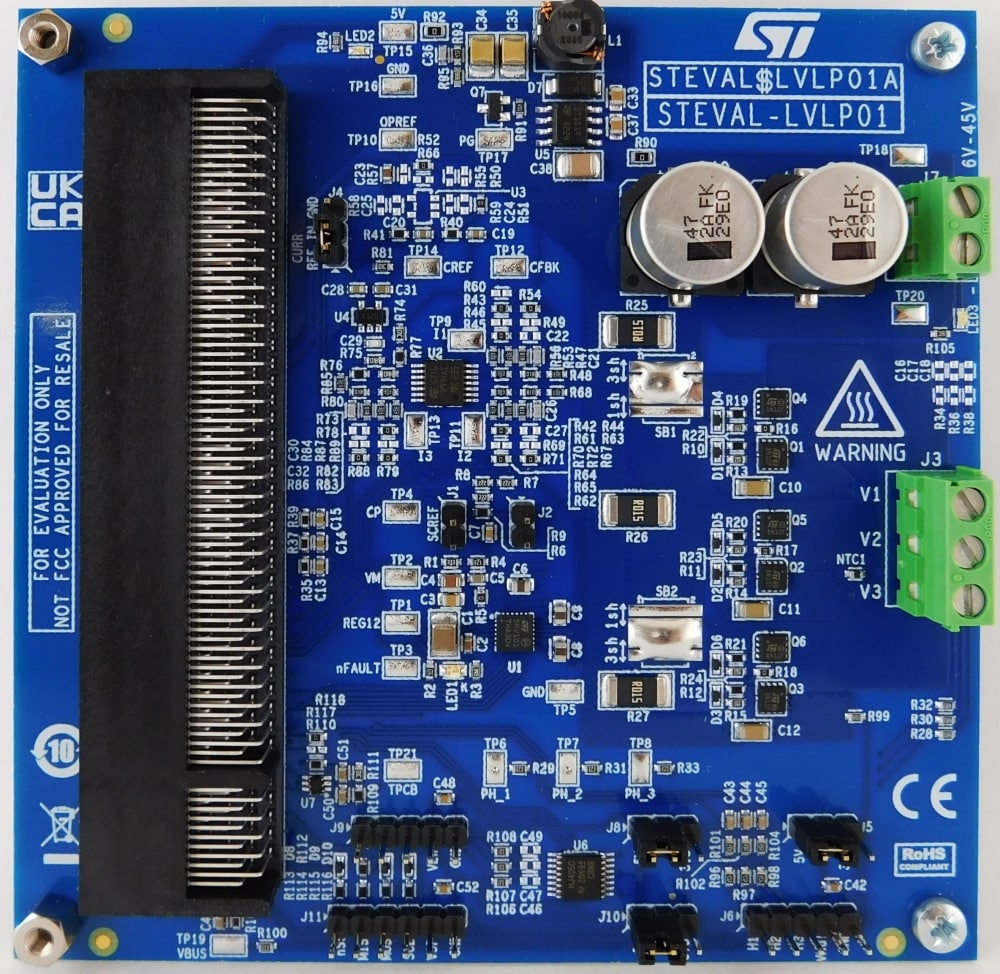

The STEVAL-LVLP01 evaluation board is based on the STDRIVE101 three-phase gate driver and the STL8N10F7 power MOSFETs. It embeds a power stage and circuitry for driving three-phase brushless DC motors.

Together with the B-G473E-ZEST1S the user can enable the ZeST and HSO algorithms on the STM32 microcontroller.

The STEVAL-LVLP01 can support single-shunt or three-shunt operation. The different connectors for onboard motor positioning feedback and motor phase sensing network allow implementation of sensor and sensorless algorithms for motion control.

  • All features

    • STDRIVE101 triple half-bridge gate driver
    • STL8N10F7 N-channel 100 V STripFET F7 power MOSFET
    • Board connectors:
      • MC connector V2
    • Single-shunt or three-shunt operation
