Device Information

ZEROPOWER device selection information is given in the ZEROPOWER Product Selector.

Battery Information

M4Z28-BR00SH1: 3V, 48mAh, 0 to 70°C, SNAPHAT package

M4Z32-BR00SH6: 3V, 120mAh, –40 to 85°C, SNAPHAT package

Battery Life Data

Select the ZEROPOWER Device, Temperature range and Battery Type and Click for battery life data.



Data Retention Lifetime vs. Temperature in Years (Vcc Always OFF)

Temperature (°C) Typical Worst Case
0 >>20 >>20
10 >>20 >20
20 >>20 >20
25 >20 17.2
30 >20 12.9
40 14.2 7.5
50 7.4 3.8
60 4.5 2.5
70 2.6 1.4
M48Z35Y/AY/AV Battery Life Data

Data Retention Lifetime vs. Temperature in Years (Vcc Always OFF)

Temperature (°C) Typical Worst Case
0 >>20 >>20
10 >>20 >>20
20 >>20 >>20
25 >>20 >>20
30 >>20 >20
40 >20 18.6
50 18.4 9.5
60 11.3 6.2
70 6.5 3.5
M48Z35Y/AY/AV Battery Life Data

Data Retention Lifetime vs. Temperature in Years (Vcc Always OFF)

Temperature (°C) Typical Worst Case
–40 >>20 >>20
–30 >>20 >>20
–20 >>20 >>20
–10 >>20 >>20
0 >>20 >>20
10 >>20 >20
20 >>20 >20
25 >20 17.7
30 >20 13.1
40 16.7 7.5
50 8.4 4.0
60 5.4 2.5
70 3.1 1.4
80 1.7 0.8
85 1.4 0.6
M48Z35Y/AY/AV Battery Life Data

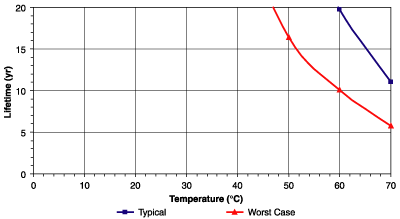

Data Retention Lifetime vs. Temperature in Years (Vcc Always OFF)

Temperature (°C) Typical Worst Case
0 >>20 >>20
10 >>20 >>20
20 >>20 >>20
25 >>20 >>20
30 >>20 >>20
40 >>20 >20
50 >20 16.4
60 19.7 10.1
70 11.0 5.8
M48Z58Y Battery Life Data

Data Retention Lifetime vs. Temperature in Years (Vcc Always OFF)

Temperature (°C) Typical Worst Case
0 >>20 >>20
10 >>20 >>20
20 >>20 >>20
25 >>20 >>20
30 >>20 >>20
40 >>20 >>20
50 >>20 >>20
60 >>20 >20
70 11.0 11.0

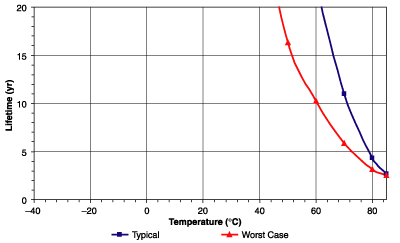

Data Retention Lifetime vs. Temperature in Years (Vcc Always OFF)

Temperature (°C) Typical Worst Case
–40 >>20 >>20
–30 >>20 >>20
–20 >>20 >>20
–10 >>20 >>20
0 >>20 >>20
10 >>20 >>20
20 >>20 >>20
25 >>20 >>20
30 >>20 >>20
40 >>20 >20
50 >20 16.3
60 >20 10.3
70 11.0 5.8
80 4.3 3.2
85 2.7 2.5
M48Z58Y Battery Life Data
Note:M48Z58Y SOIC requires use of M4Z32-BR00SH6 SNAPHAT® top for Industrial Temperature.
