B-STLINK-ISOL

Active

Isolation and voltage adapter board for STLINK-V3SET

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

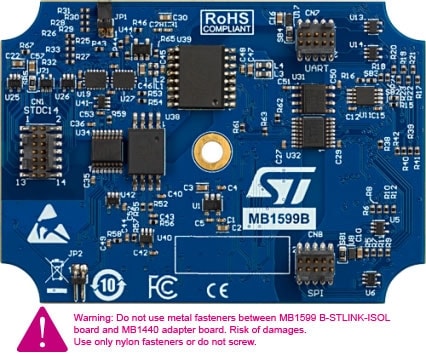

The B-STLINK-ISOL board is an additional module for STLINK-V3SET, performing galvanic isolation and voltage adaptation for STM32 microcontroller targets running below 3.3 V down to 1.65 V. The module can be enclosed directly in the original STLINK-V3SET casing, when used as an STM32 debugging probe (JTAG/SWD/SWV/VCP) through the STDC14 connector. It can be also inserted between the STLINK-V3SET main board (MB1441) and its adapter board (MB1440) when providing access to bridge signals and other connectors.
B-STLINK-ISOL does not support STM8 targets, for which voltage adaptation is performed on the baseline adapter board (MB1440) provided with the STLINK-V3SET.
  • All features

    • 1.65 V - 3.3 V voltage adapter and galvanic isolation board for STLINK-V3SET
    • 2.5 kVrms insulation rating; 300 Vrms basic insulation working voltage per IEC 62368‑1:2014
    • Input/output isolation and level shifters for STM32 debug SWD, SWV, and JTAG signals
    • Input/output isolation and level shifters for VCP Virtual COM port (UART) signals
    • Input/output isolation and level shifters for bridge (SPI/UART/I2C/CAN/GPIOs) signals
    • Closed casing when using the STDC14 connector (STM32 SWD, SWV, and VCP)
    • Connection compatible with the STLINK-V3SET adapter board (MB1440) for STM32 microcontrollers JTAG and bridge

You might also like...

Recommended for you

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STLINK-V3SET

      Active

      STLINK-V3 modular in-circuit debugger and programmer for STM32/STM8

      Programming Hardware for STM32 MCUs ST
      STLINK-V3SET

      Description:

      STLINK-V3 modular in-circuit debugger and programmer for STM32/STM8

Quality and Reliability

Part Number Marketing Status RoHS Compliance Grade Material Declaration**
B-STLINK-ISOL
Active
Ecopack1

B-STLINK-ISOL

Package:

Ecopack1

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Budgetary Price (US$)*/Qty
B-STLINK-ISOL Available at 6 distributors

Distributor availability ofB-STLINK-ISOL

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 7 1 Order Now
RS COMPONENTS EUROPE 21 1 Order Now
AVNET AMERICA 8 0 Order Now
MOUSER WORLDWIDE 52 1 Order Now
Farnell Element14 EUROPE 22 1 Order Now
ANGLIA Live EUROPE 5 1 Order Now

Distributor reported inventory date: 2021-09-23

Distributor Name

DIGIKEY

Stock

7

Min.Order

1

Region

WORLDWIDE Order Now

RS COMPONENTS

Stock

21

Min.Order

1

Region

EUROPE Order Now

AVNET

Stock

8

Min.Order

0

Region

AMERICA Order Now

MOUSER

Stock

52

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

22

Min.Order

1

Region

EUROPE Order Now

ANGLIA Live

Stock

5

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2021-09-23

Buy Direct -
Active
ST EAR99 NEC 40.0 / 1

B-STLINK-ISOL

Core Product

-

Marketing Status

Active

Distributor availability ofB-STLINK-ISOL

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 7 1 Order Now
RS COMPONENTS EUROPE 21 1 Order Now
AVNET AMERICA 8 0 Order Now
MOUSER WORLDWIDE 52 1 Order Now
Farnell Element14 EUROPE 22 1 Order Now
ANGLIA Live EUROPE 5 1 Order Now

Distributor reported inventory date: 2021-09-23

Distributor Name

DIGIKEY

Stock

7

Min.Order

1

Region

WORLDWIDE Order Now

RS COMPONENTS

Stock

21

Min.Order

1

Region

EUROPE Order Now

AVNET

Stock

8

Min.Order

0

Region

AMERICA Order Now

MOUSER

Stock

52

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

22

Min.Order

1

Region

EUROPE Order Now

ANGLIA Live

Stock

5

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2021-09-23

Supplier

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
