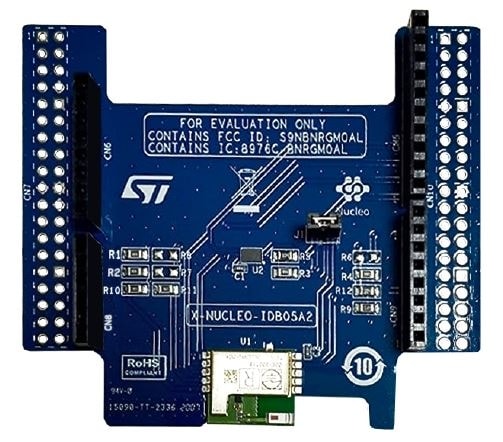

  • The X-NUCLEO-IDB05A2 Bluetooth low energy expansion board is based on the BlueNRG-M0 BLE network processor module.

    The BlueNRG-M0 is Bluetooth v4.2 compliant, FCC and IC certified (FCC ID: S9NBNRGM0AL; IC: 8976C-BNRGM0AL). It supports simultaneous master/slave roles and can behave as a Bluetooth low energy sensor and hub device at the same time.
    The BlueNRG-M0 provides a complete RF platform in a tiny form factor, with integrated radio, antenna, high frequency and LPO oscillators.
    The X-NUCLEO-IDB05A2 is compatible with the ST morpho (not mounted) and Arduino UNO R3 connector layout.
    The X-NUCLEO-IDB05A2 interfaces with the STM32 microcontroller via the SPI pin and allows changing the default SPI clock, SPI chip select and SPI IRQ by replacing a resistor on the expansion board.

    Key Features

    • STM32 Nucleo expansion board based on the BlueNRG-M0 Bluetooth v4.2 compliant, FCC and IC certified module (FCC ID: S9NBNRGM0AL; IC: 8976C-BNRGM0AL)
    • BlueNRG-M0 main features:
      • Embedded Bluetooth low energy protocol stack (GAP, GATT, SM, L2CAP, LL, RFPHY)
      • Embedded BlueNRG-MS network processor
      • On-board chip antenna
    • Small form factor: 11.5 mmx13.5 mm
    • Equipped with Arduino UNO R3 connector
    • Scalable solution capable of cascading multiple boards for larger systems
    • Free comprehensive development firmware library and samples for BlueNRG-MS, compatible with STM32Cube firmware
    • RoHS compliant

Recommended for you

Related Applications

Cloud Connectivity

Connectivity

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      FP-SNS-FLIGHT1

      Active

      STM32Cube function pack for IoT node with NFC, BLE connectivity and time-offlight sensors

      STM32 ODE Function Pack SW ST

      FP-SNS-MOTENV1

      Active

      STM32Cube function pack for IoT node with BLE connectivity and environmental and motion sensors

      STM32 ODE Function Pack SW ST

      X-CUBE-BLE1

      Active

      Bluetooth Low Energy software expansion for STM32Cube

      STM32Cube Expansion Packages ST

      X-CUBE-BLEMESH1

      Active

      Mesh over Bluetooth low energy software expansion for STM32Cube

      STM32Cube Expansion Packages ST
      FP-SNS-FLIGHT1

      Description:

      STM32Cube function pack for IoT node with NFC, BLE connectivity and time-offlight sensors
      FP-SNS-MOTENV1

      Description:

      STM32Cube function pack for IoT node with BLE connectivity and environmental and motion sensors
      X-CUBE-BLE1

      Description:

      Bluetooth Low Energy software expansion for STM32Cube
      X-CUBE-BLEMESH1

      Description:

      Mesh over Bluetooth low energy software expansion for STM32Cube
    • Part number
      Status
      Description
      Type
      Supplier

      NUCLEO-F401RE

      Active

      STM32 Nucleo-64 development board with STM32F401RE MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo Boards ST

      NUCLEO-L053R8

      Active

      STM32 Nucleo-64 development board with STM32L053R8 MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo Boards ST
      NUCLEO-F401RE

      Description:

      STM32 Nucleo-64 development board with STM32F401RE MCU, supports Arduino and ST morpho connectivity
      NUCLEO-L053R8

      Description:

      STM32 Nucleo-64 development board with STM32L053R8 MCU, supports Arduino and ST morpho connectivity

Quality and Reliability

Part Number Marketing Status RoHS Compliance Grade Material Declaration**
X-NUCLEO-IDB05A2
Active
Ecopack2

X-NUCLEO-IDB05A2

Package:

Ecopack2

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Board production status
Country of Origin
Budgetary Price (US$)*/Qty
X-NUCLEO-IDB05A2 Available at 5 distributors

Distributor availability ofX-NUCLEO-IDB05A2

Distributor Name
Region Stock Min. Order Third party link
AVNET AMERICA 20 0 Order Now
ARROW EUROPE 44 0 Order Now
MOUSER WORLDWIDE 29 1 Order Now
Farnell Element14 EUROPE 16 1 Order Now
RUTRONIK EUROPE 5 1 Order Now

Distributor reported inventory date: 2020-11-23

Distributor Name

AVNET

Stock

20

Min.Order

0

Region

AMERICA Order Now

ARROW

Stock

44

Min.Order

0

Region

EUROPE Order Now

MOUSER

Stock

29

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

16

Min.Order

1

Region

EUROPE Order Now

RUTRONIK

Stock

5

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-11-23

Buy Direct BlueNRG-M0, BlueNRG-MS
Active
ST 5A992C 5A002A2 Stock available ITALY 13.0 / 1

X-NUCLEO-IDB05A2

Core Product

BlueNRG-M0, BlueNRG-MS

Marketing Status

Active

Budgetary Price (US$)*/Qty

13.0 / 1

Distributor availability ofX-NUCLEO-IDB05A2

Distributor Name
Region Stock Min. Order Third party link
AVNET AMERICA 20 0 Order Now
ARROW EUROPE 44 0 Order Now
MOUSER WORLDWIDE 29 1 Order Now
Farnell Element14 EUROPE 16 1 Order Now
RUTRONIK EUROPE 5 1 Order Now

Distributor reported inventory date: 2020-11-23

Distributor Name

AVNET

Stock

20

Min.Order

0

Region

AMERICA Order Now

ARROW

Stock

44

Min.Order

0

Region

EUROPE Order Now

MOUSER

Stock

29

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

16

Min.Order

1

Region

EUROPE Order Now

RUTRONIK

Stock

5

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-11-23

Supplier

ST

ECCN (US)

5A992C

ECCN (EU)

5A002A2

Board production status

Stock available

Budgetary Price (US$)* / Qty

13.0 / 1

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
