Product overview

Description

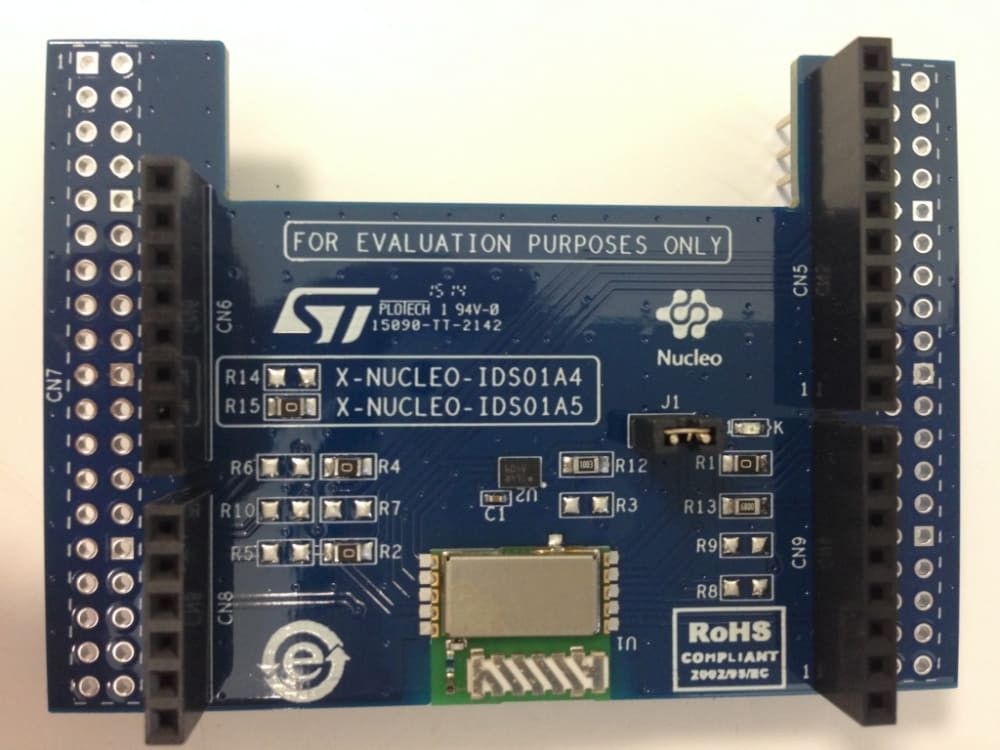

The X-NUCLEO-IDS01A5 is an evaluation board based on SPIRIT1 RF module SPSGRF-915 to allow expansion of STM32 Nucleo boards. The SPSGRF-915 module operates in the 915 MHz ISM band and is FCC certified (FCC ID: S9NSPSGRF) and IC certified (IC:8976C-SPSGRF). Identification of the operating frequency of the X-NUCLEO-IDS01Ax (x= 4 or 5) is performed through two resistors (R14 and R15). It is compatible with the ST Morpho and Arduino UNO R3 connector layout. The X-NUCLEO-IDS01A5 interfaces with the STM32 microcontroller via SPI connections and GPIO pins. The user can change some of the GPIOs by mounting or removing the resistors.

All features
STM32 Nucleo expansion board based on the SPSGRF-915

X-NUCLEO-IDS01A5 contains FCC and IC certified module SPSGRF-915 (FCC ID: S9NSPSGRF and IC: 8976C-SPSGRF)

SPGRF-915:

915 MHz FCC and IC certified module based on low-power, low-rate sub-1 GHz SPIRIT1 transceiver

Integrated Balun (BALF-SPI-01D3)

Chip antenna

Compatible with STM32 Nucleo boards

Equipped with Arduino UNO R3 connectors

Scalable solution; can cascade multiple boards for larger systems

Example firmware for point-to-point communication, compatible with STM32Cube firmware

RoHS compliant
Read more Read less
