X-NUCLEO-IHM07M1

Active

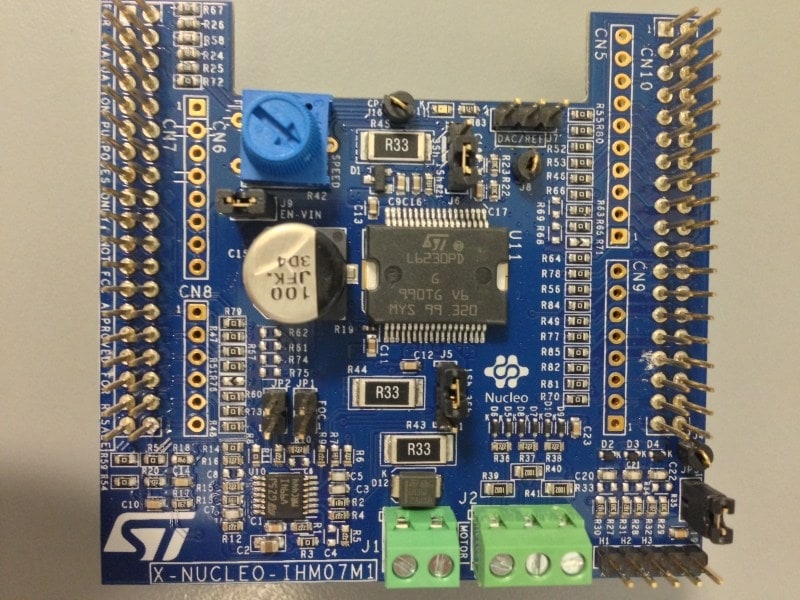

Three-phase brushless DC motor driver expansion board based on L6230 for STM32 Nucleo

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products
  • The X-NUCLEO-IHM07M1 is a three-phase brushless DC motor driver expansion board based on the L6230 for STM32 Nucleo. It provides an affordable and easy-to-use solution for driving three-phase brushless DC motor in your STM32 Nucleo project. The X-NUCLEO-IHM07M1 is compatible with the ST Morpho connector and supports the addition of other boards which can be stacked with onto a single STM32 Nucleo board. The user can also mount the Arduino UNO R3 connector. The driver used on this STM32 Nucleo board is the L6230, a DMOS fully integrated driver for three-phase brushless DC motors assembled in a PowerSO-36 package (L6230PD), with overcurrent and thermal protection. The L6230 driver is optimized for six-step and FOC algorithms thanks to independent current sensing.

    Key Features

    • 3-phase driver for BLDC/PMSM motors
    • Nominal operating voltage range from 8 V to 48 VDC
    • 2.8 A output peak current (1.4 ARMS)
    • Operating frequency up to 100 kHz
    • Non dissipative overcurrent detection and protection
    • Cross-conduction protection
    • Thermal measuring and overheating protection
    • Compatible with STM32 Nucleo boards
    • Equipped with ST Morpho connectors
    • 3-shunt and 1-shunt configurable jumpers for motor current sensing
    • Hall/Encoder motor sensor connector and circuit
    • Debug connector for DAC, GPIOs, etc.
    • Potentiometer available for speed regulation
    • User LED
    • RoHS compliant

Sample & Buy

Part Number
Marketing Status
Core Product
Board production status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
X-NUCLEO-IHM07M1
Active
L6230 Stock available 10.0 1 EAR99 ITALY Check Availability

Distributor availability ofX-NUCLEO-IHM07M1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 36 1 Order Now
RS COMPONENTS EUROPE 36 1 Order Now
ARROW AMERICA 34 1 Order Now
MOUSER WORLDWIDE 3 1 Order Now
Farnell Element14 EUROPE 2 1 Order Now
ANGLIA Live EUROPE 1 1 Order Now

Distributor reported inventory date: 2019-09-20

Distributor Name

DIGIKEY

Stock

36

Min.Order

1

Region

WORLDWIDE Order Now

RS COMPONENTS

Stock

36

Min.Order

1

Region

EUROPE Order Now

ARROW

Stock

34

Min.Order

1

Region

AMERICA Order Now

MOUSER

Stock

3

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

2

Min.Order

1

Region

EUROPE Order Now

ANGLIA Live

Stock

1

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2019-09-20

Buy now

X-NUCLEO-IHM07M1

Marketing Status

Active

Core Product

L6230

Unit Price (US$)

10.0*

Distributor availability ofX-NUCLEO-IHM07M1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 36 1 Order Now
RS COMPONENTS EUROPE 36 1 Order Now
ARROW AMERICA 34 1 Order Now
MOUSER WORLDWIDE 3 1 Order Now
Farnell Element14 EUROPE 2 1 Order Now
ANGLIA Live EUROPE 1 1 Order Now

Distributor reported inventory date: 2019-09-20

Distributor Name

DIGIKEY

Stock

36

Min.Order

1

Region

WORLDWIDE Order Now

RS COMPONENTS

Stock

36

Min.Order

1

Region

EUROPE Order Now

ARROW

Stock

34

Min.Order

1

Region

AMERICA Order Now

MOUSER

Stock

3

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

2

Min.Order

1

Region

EUROPE Order Now

ANGLIA Live

Stock

1

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2019-09-20

Board production status

Stock available

Unit Price (US$)

10

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

Related Applications

Industrial Motor Control

Embedded Software

    • Part Number

      Three-phase brushless DC motor driver software expansion for STM32Cube

Evaluation Tools

    • Part Number

      STM32 Nucleo-64 development board with STM32F030R8 MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo-64 development board with STM32F103RB MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo-64 development board with STM32F302R8 MCU, supports Arduino and ST morpho connectivity

      STM32 Nucleo-64 development board with STM32F401RE MCU, supports Arduino and ST morpho connectivity

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB2665
      Three-phase brushless DC motor driver expansion board based on L6230 for STM32 Nucleo
      1.0
      929.5 KB
      PDF
      DB2665

      Three-phase brushless DC motor driver expansion board based on L6230 for STM32 Nucleo

    • Description Version Size Action
      UM1943
      Getting started with the X-NUCLEO-IHM07M1 motor driver expansion board based on the L6230 for STM32 Nucleo
      1.0
      1.29 MB
      PDF
      UM2124
      Getting started with the six-step firmware library for STM32 Nucleo boards based on STM32F microcontrollers
      2.0
      2.6 MB
      PDF
      UM1943

      Getting started with the X-NUCLEO-IHM07M1 motor driver expansion board based on the L6230 for STM32 Nucleo

      UM2124

      Getting started with the six-step firmware library for STM32 Nucleo boards based on STM32F microcontrollers

Presentations & Training Material

    • Description Version Size Action
      X-NUCLEO-IHM07M1 Quick start guide 1.1
      1.4 MB
      PDF

      X-NUCLEO-IHM07M1 Quick start guide

Hardware Resources

    • Description Version Size Action
      X-NUCLEO-IHM07M1 gerber files 1.0
      285.32 KB
      ZIP

      X-NUCLEO-IHM07M1 gerber files

    • Description Version Size Action
      X-NUCLEO-IHM07M1 BOM 1.0
      184.76 KB
      PDF

      X-NUCLEO-IHM07M1 BOM

    • Description Version Size Action
      X-NUCLEO-IHM07M1 schematic 2.0
      340.82 KB
      PDF

      X-NUCLEO-IHM07M1 schematic

Publications and Collaterals

    • Description Version Size Action
      X-NUCLEO expansion boards motor control - Selection guide 1.2
      263.59 KB
      PDF

      X-NUCLEO expansion boards motor control - Selection guide

    • Description Version Size Action
      STM32 Open Development Environment Brochure 17.09
      1.21 MB
      PDF

      STM32 Open Development Environment Brochure

Part Number Marketing Status RoHS Compliance Grade Material Declaration**
X-NUCLEO-IHM07M1
Active
Ecopack2

X-NUCLEO-IHM07M1

Package:

Ecopack2

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
