Product overview

Description

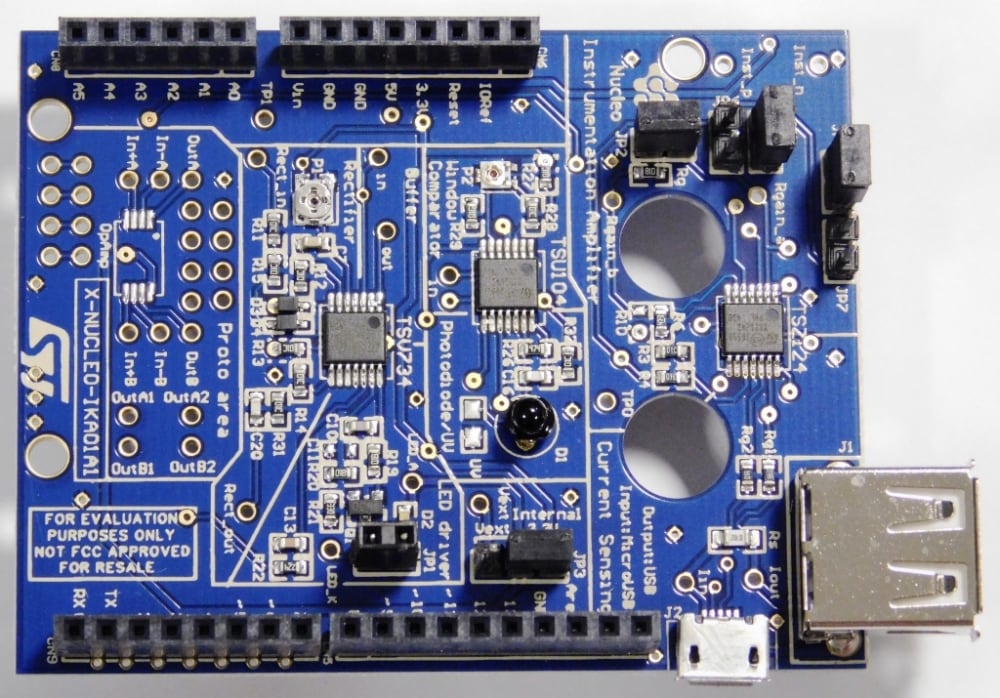

The X-NUCLEO-IKA01A1 is a multifunctional expansion board based on STMicroelectronics operational amplifiers. It provides an affordable and easy-to-use solution for various use cases with your STM32 Nucleo board. The X-NUCLEO-IKA01A1 is compatible with the Arduino™ UNO R3 connector, and supports the addition of other boards that can be stacked for enhanced applications with an STM32 Nucleo board. It can be used as an analog front-end by conditioning signals as actuator to drive LEDs or coils, or in a comparator architecture.

Thanks to its current-sensing configuration, it allows current measurement of any device that has a Micro-USB port. A highly accurate TSZ124 Micropower operational amplifier is used for this configuration as well as for that of the instrumentation amplifier. The expansion board also contains a TSU104 Nanopower op-amp and a TSV734 Micropower op-amp for mobile applications.

All features
7 predefined configurations:

Instrumentation amplifier structure

Current sensing with or without USB

Photodiode/ultraviolet (UV) current sensing

Buffer

Full wave rectifier

Constant current LED driver

Window comparator

One prototyping area

Compatible with STM32 Nucleo boards

Comprehensive free development firmware library (X-CUBE-ANALOG1)

Powered through the Arduino UNO connectors

RoHS compliant
Read more Read less
