Industrial digital output expansion board based on IPS1025HF for STM32 Nucleo

Download databrief
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

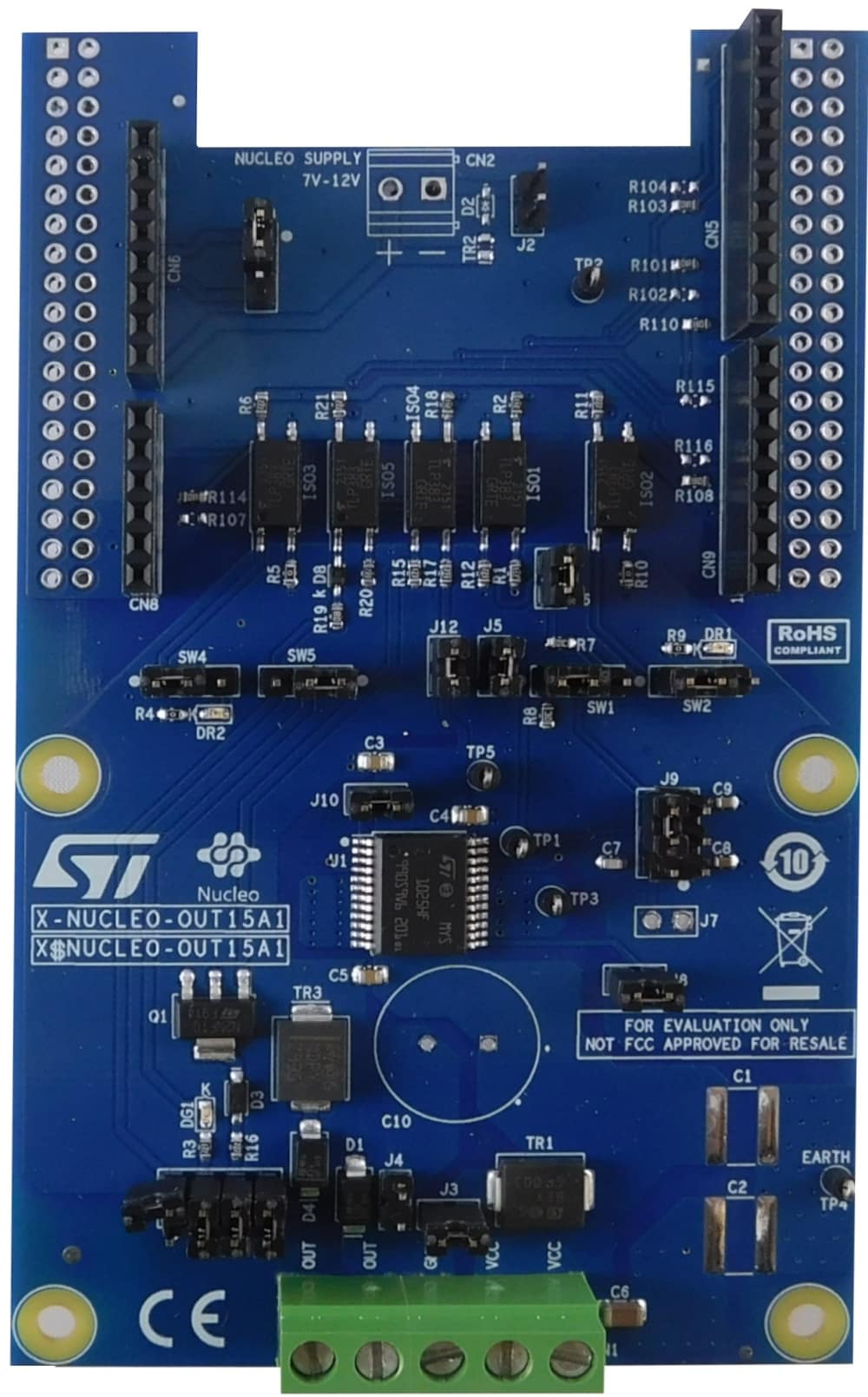

The X-NUCLEO-OUT15A1 is an industrial digital output expansion board for STM32 Nucleo. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS1025HF single high-side, smart power, solid-state relay in a digital output module connected to 2.5 A industrial loads.

The X-NUCLEO-OUT15A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by the GPIO pins and Arduino® UNO R3 connectors.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

You can also evaluate a system consisting of an X-NUCLEO-OUT05A1 stacked on an X-NUCLEO-OUT15A1 expansion board.

Supplying the X-NUCLEO-OUT05A1 through the main supply rail and the X-NUCLEO-OUT15A1 through the output of the X-NUCLEO-OUT05A1, you can achieve the typical architecture of a single channel digital output for safety systems. The process stages of the two expansion boards result cascaded. The load connected to the X-NUCLEO-OUT15A1 output can be supplied only when both cascaded systems are properly working.
  • All features

    • Based on the IPS1025HF single high-side switch, which features:
      • Operating range up to 60 V
      • Low-power dissipation (RON(MAX) = 25 mΩ)
      • Propagation delay at startup < 60 µs
      • Fast decay for inductive loads
      • Smart driving of capacitive load
      • Under-voltage lock-out
      • Overload and overtemperature protection
      • PowerSSO 24 package
    • Application board operating range: 8-33 V/0-2.5 A
    • Extended voltage operating range (J3 open) up to 60 V
    • Green LED for output on/off status (J11 close 3-4 and SW5 close 1-2)
    • Red LEDs for overload and overheating diagnostics (SW2 and SW4 close 2-3)
    • Output voltage on/off status feedback (J11 close 1-2)
    • Control signal for fast discharge of output voltage (J11 close 5-6, J12 close)
    • External fast discharge circuitry for huge inductive loads (J11 close 7-8)
    • 5 kV galvanic isolation
    • Supply rail reverse polarity protection
    • Compatible with STM32 Nucleo development boards
    • Equipped with Arduino® UNO R3 connectors
    • CE certified
    • Not FCC approved for resale
    • RoHS and China RoHS compliant
