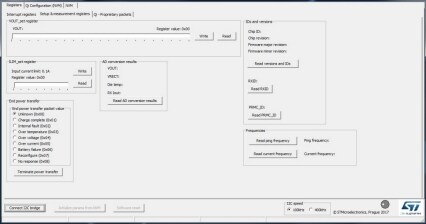

  • The STSW-ISB043GUI graphical user interface lets you configure the main parameters of the STWLC33 wireless power receiver.

    The GUI facilitates communication with the STWLC33 wireless power receiver. Through the GUI, you can access the user registers, read ADC and frequency (at ping and actual operating frequency) measurements.
    You can also define parameters for operation in Qi as well as configure the parameters of the receiver output.

    Key Features

    • Graphical User Interface application for Windows
    • Access to all user registers
    • ADC measurement readings
    • Frequency readings
    • Qi mode configuration
    • Receiver output configuration
    • NVM updating
