STSW-OUT3D8G4

Active
Design Win

Evaluation firmware for NUCLEO-G431RB enabling STSW-IFAPGUI on STDES-OUT03DO8 and STDES-OUT04DO8 digital output modules

Get Software Download databrief
Overview
Sample & Buy
Solutions
Documentation
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase
Get Started

Product overview

Description

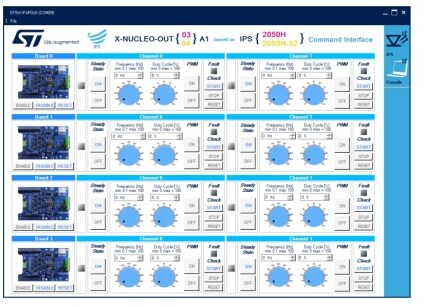

The STSW-OUT3D8G4 firmware runs on the NUCLEO-G431RB development board. It allows the control of the STDES-OUT03DO8 or STDES-OUT04DO8 reference designs using the STSW-IFAPGUI graphical user interface. The STSW-OUT3D8G4 contains the software routines that enable the USB-based communication between the NUCLEO-G431RB and the system where the STSW-IFAPGUI runs, and the control of the STDES-OUT03DO8 or STDES-OUT04DO8.
The firmware can control up to four expansion boards (X-NUCLEO-OUT03A1 or X-NUCLEO-OUT04A1).
The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through USB connection with the application layer that runs on the NUCLEO-G431RB development board stacked with the expansion board.
  • All features

    • Full control of the STDES-OUT03DO8 and STDES-OUT04DO8 octal digital output modules via the STSW-IFAPGUI graphical user interface
    • Control of:channel applicationsoutput channel switching frequency and duty cycle configurationvisualization of diagnostic signals (OR-ed overload and overtemperature per-channel diagnostic)

Get Software

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STSW-IFAPGUI

      Active

      Graphical user interface for the industrial IPS and IO-Link transceiver evaluation boards based on STM32 Nucleo

      Evaluation Tool Software --
      STSW-IFAPGUI

      Description:

      Graphical user interface for the industrial IPS and IO-Link transceiver evaluation boards based on STM32 Nucleo
