Product overview
Description

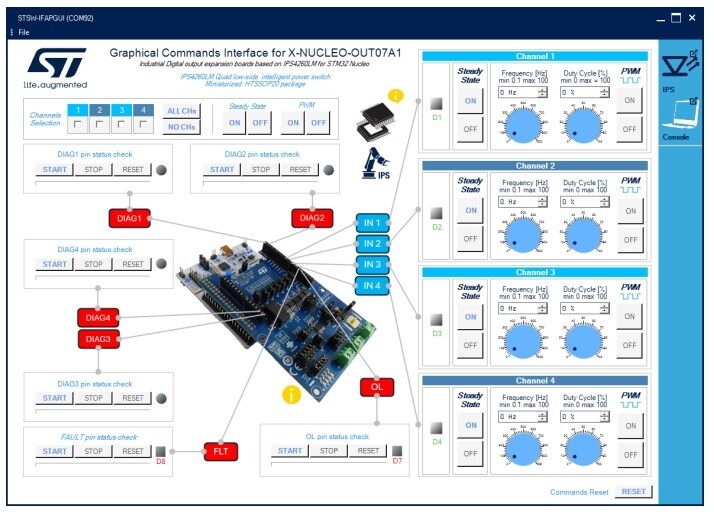

The STSW-OUT7F4 firmware runs on the NUCLEO-F401RE development board and allows controlling the X-NUCLEO-OUT07A1 expansion board using the STSW-IFAPGUI graphical user interface.
The STSW-OUT7F4 contains the software routines that enable the USB-based communication between the NUCLEO-F401RE and the system where the STSW-IFAPGUI runs, and the control of the X-NUCLEO-OUT07A1.
The firmware can control a single expansion board (X-NUCLEO-OUT07A1).
The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through the USB connection with the application layer running on the NUCLEO-F401RE development board stacked with the expansion board.
-
All features
- Full control of the X-NUCLEO-OUT07A1 expansion board via the STSW-IFAPGUI graphical user interface
- Control of:
- Output channel switching frequency and duty cycle configuration
- Visualization of diagnostic signals (common open load diagnostic, common thermal shutdown, and overload diagnostic; per-channel thermal shutdown diagnostic)
