Product overview
Description
The STSW-OUT7G4 firmware runs on the NUCLEO-G431RB development board and allows the control of the X-NUCLEO-OUT07A1 expansion board using the STSW-IFAPGUI graphical user interface.
The STSW-OUT7G4 contains the software routines that enable the USB-based communication between NUCLEO-G431RB and the system where STSW-IFAPGUI runs, and the control of the X-NUCLEO-OUT07A1.
The firmware can control a single expansion board X-NUCLEO-OUT07A1.

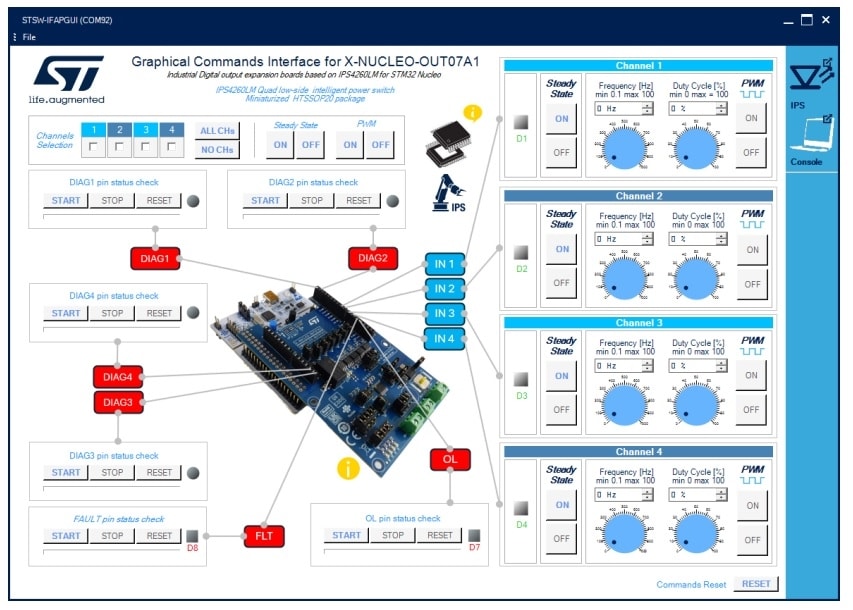

The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through USB connection with the application layer running on the NUCLEO-G431RB development board stacked with the expansion board.
-
All features
- Full control of the X-NUCLEO-OUT07A1 expansion board via the STSW-IFAPGUI graphical user interface
- Control of:
- Output channel switching frequency and duty cycle configuration
- Visualization of diagnostic signals (common open load diagnostic, common thermal shutdown and overload diagnostic and per-channel thermal shutdown diagnostic)
