STSW-STWINKT01

Active

High speed data logging and other firmware examples for STEVAL-STWINKT1 evaluation kit for Industry 4.0

Get Software Download databrief
Overview
Sample & Buy
Solutions
Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

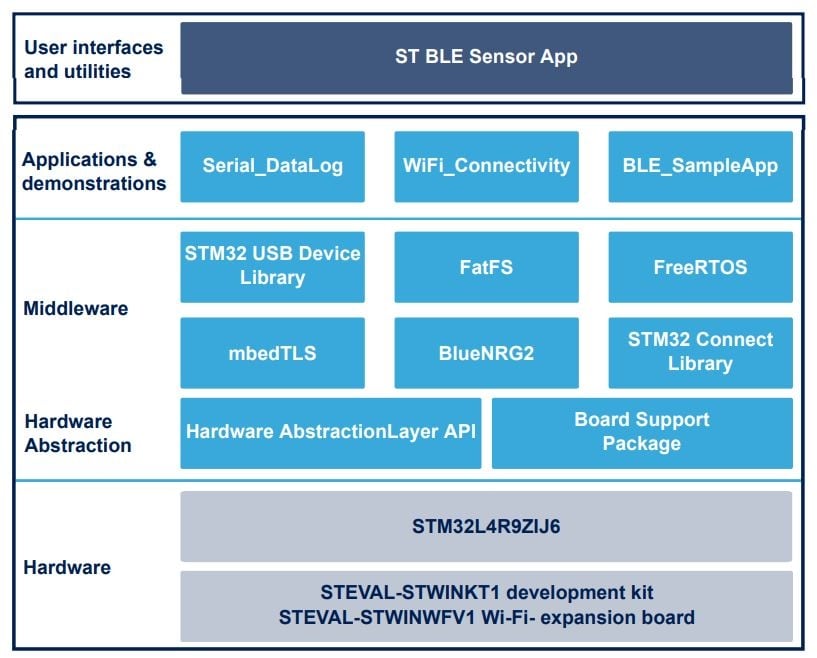

  • The STSW-STWINKT01 firmware package for the SensorTile Wireless Industrial Node (STWIN) development kit provides sample projects that you can use to develop custom predictive maintenance, smart industry, IoT and remote monitoring applications. The package is based on our STM32Cube software technology, and includes all the low level drivers to manage the on-board devices and system-level interfaces.

    The package features two projects that demonstrate data logging functionality. One involves streaming data via the USB Virtual COM Port class, which you can subsequently display directly on a PC terminal, and the other is for high speed data storage at maximum sensor sampling rates. In the second case, sensor data can be either stored on micro SD card or can be streamed via USB (WinUSB class).
    There are also three projects regarding audio. The OnboardMics application streams audio signals from both the on-board analog and digital microphones via USB, so you can record and process them on a host PC. The MicArrayCoupon application instead requires the STEVAL-STWINMAV1 microphone array expansion board (not included in the kit), from which the application can simultaneously acquire up to four external microphone audio signals through a USB interface.
    The UltrasoundFFT example calculates the FFT of the on-board analog microphone signal and streams the result to a PC GUI via USB. The microphone sampling rate is set by default to 192 kHz whereas the microphone bandwidth is up to 80 kHz.
    Other two projects demonstrate wireless connectivity using Bluetooth and Wi-Fi. The Bluetooth project allows you to stream environmental sensor data via the Bluetooth Low Energy (BLE) protocol, and is compatible with our freely available ST BLE Sensor app on Android and iOS stores, so you can read and manipulate the data from your mobile device. The Wi-Fi project requires the STEVAL-STWINWFV1 Wi-Fi expansion board (not included in the kit) to implement basic network functionality including pinging a remote station, connecting to a TLS secure server, sending data to an echo server and verifying returned data, and running a server that a remote client can connect to.

    Key Features

    • Set of firmware examples that show how to implement basic functions on the STWIN (STEVAL-STWINKT1) kit:
      • Sensor data streaming example via USB terminal (VCP)
      • Analog and digital microphone signal acquisition and streaming via USB
      • Wi-Fi network functionality using the connectivity framework (with Wi-Fi expansion board)
      • Sensor data streaming via BLE
      • High speed sensor data logger to SD card or via USB
      • Microphone array audio acquisition example (with microphone expansion board)
      • Ultrasound FFT analysis demonstration
      • Source code freely available from the ST website with developer-friendly license terms
    • Embedded software, middleware and drivers:
      • FatFS third party FAT file system module for small embedded systems
      • FreeRTOS third party RTOS kernel for embedded devices
      • STWIN Low-Level BSP drivers
    • Based on STM32Cube software development environment for STM32 microcontrollers

Get Software

Recommended for you

Latest from ST

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3968
      High speed data logging and other firmware examples for STEVAL-STWINKT1 evaluation kit for Industry 4.0
      4.0
      1.11 MB
      PDF
      DB3968

      High speed data logging and other firmware examples for STEVAL-STWINKT1 evaluation kit for Industry 4.0

    • Description Version Size Action
      UM2688
      High-Speed Datalog firmware for STEVAL-STWINKT1
      1.1
      1.17 MB
      PDF
      UM2621
      How to use the software package for the SensorTile Wireless Industrial Node based on STM32Cube
      3.0
      1,011.11 KB
      PDF
      UM2688

      High-Speed Datalog firmware for STEVAL-STWINKT1

      UM2621

      How to use the software package for the SensorTile Wireless Industrial Node based on STM32Cube
