Product overview
Description

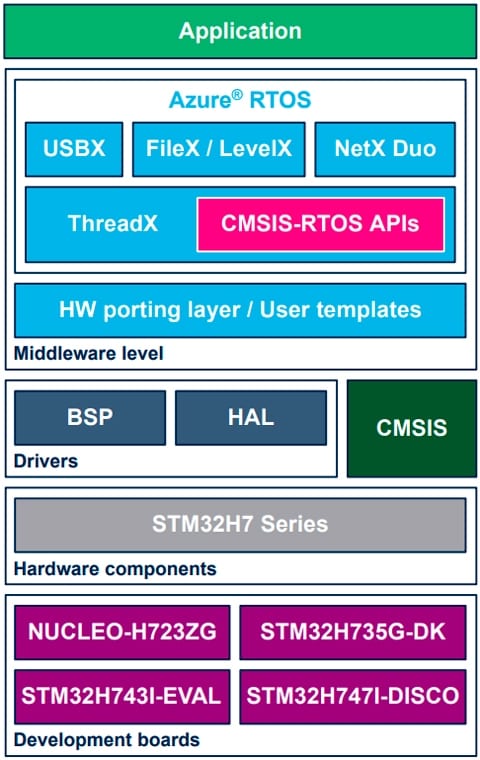

X-CUBE-AZRTOS-H7 (Azure® RTOS STM32Cube Expansion Package) provides a full integration of Microsoft® Azure® RTOS in the STM32Cube environment for the STM32H7 Series of microcontrollers. Ready-to-run applicative examples provided for the NUCLEO-H723ZG, STM32H735G-DK, STM32H747I-DISCO and STM32H743I-EVAL Evaluation boards, along with a full compatibility with STM32CubeMX and STM32CubeIDE, ensure that X-CUBE-AZRTOS-H7 drastically reduces the learning curve and provides a smooth application development experience with Azure® RTOS and STM32H7 Series microcontrollers. The scope of this Expansion Package covers the following Azure® RTOS middleware: RTOS (ThreadX), USB Host and Device (USBX), file system including the support for NOR and NAND Flash memories (FileX and LevelX), and networking including Ethernet and Wi-Fi® media (NetX Duo).
A FreeRTOS™ adaptation layer is included and demonstrated, making it easy and quick to migrate from FreeRTOS™ to Azure® RTOS ThreadX for STM32H7 users.
X-CUBE-AZRTOS-H7 is only an STM32Cube integration of middleware stacks from Microsoft® Azure® RTOS. Neither the Azure SDK for Embedded C nor the Azure IoT Middleware for Azure RTOS, available from www.github.com/azure, are part of the X-CUBE-AZRTOS-H7 Expansion Package, which therefore does not support native connectivity to the Azure® IoT Hub.
-
All features
- Based on Azure® RTOS release 6.1.7
- Integrated and full featured operating system: Azure® RTOS ThreadX
FreeRTOS™ adaptation layer for ThreadX - Industrial grade networking stack optimized for performance coming with many IoT protocols: Azure® RTOS NetX Duo
- Advanced Flash file system (FS) / Flash translation layer (FTL), fully featured to support NOR and NAND Flash memories: Azure® RTOS FileX and Azure® RTOS LevelX
- USB Host and Device stacks coming with multiple classes: Azure® RTOS USBX
The following USB Device classes are provided with examples: HID, CDC ACM, MSC, DFU, CDC ECM, composite HID/CDC ACM The following USB Host classes are provided with examples: HID, MSC, CDC ACM, Dual Class, composite HID/CDC ACM - Safety pre-certifications (available from Microsoft): IEC 61508 SIL4, IEC 62304 Class C and ISO 26262 ASIL D
- Security pre-certifications (available from Microsoft): EAL4+ for TLS/DTLS, FIPS 140-2 for software cryptographic library
- Many applicative examples available for STMicroelectronics NUCLEO-H723ZG, STM32H735G-DK, STM32H747I-DISCO and STM32H743I-EVAL boards
- Free user-friendly license terms
- Enhanced for STMicroelectronics toolset: graphical configuration of Azure® RTOS middleware with STM32CubeMX and STM32CubeIDE
- Update mechanism, which can be enabled by the user to be notified of new releases
Get Software
