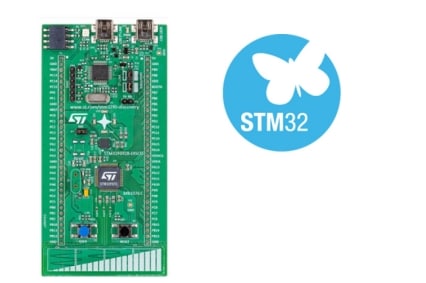

The STM32F072 Discovery kit helps you to discover the STM32F072: discover the STM32F072 which has the full set of features available in the STM32F0 series and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.
Based on the STM32F072RBT6, it includes an ST-LINK/V2 embedded debug tool interface, an ST MEMS gyroscope, LEDs, push-buttons, Linear touch sensor, touchkeys, RF EEPROM connector and a USB mini-B connector.
Key Features
- STM32F072RBT6 microcontroller featuring 128 KB of Flash memory, 16 KB of SRAM in an LQFP64 package
- On-board ST-LINK/V2 with switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- L3GD20 ST MEMS motion sensor 3-axis digital output gyroscope
- One linear touch sensor or four touchkeys
- Six LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power on
- Four user LEDs: LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
- Two push-buttons (user and reset)
- User USB with Mini-B connector
- RF EEPROM daughterboard connector
- Extension header for LQFP64 I/Os for quick connection to a prototyping board and easy probing
- Comprehensive free software including a variety of examples, part of STM32CubeF0 or STM32SnippetsL0 packages or STSW-STM32139 for legacy Standard Libraries usage
Resources
Technical Documentation
Product Specifications
| Description | Version | Size | |
|---|---|---|---|
|
DB2102: Discovery kit for STM32F072xx microcontrollers | 3.0 | 215 KB |
Technical Notes & Articles
| Description | Version | Size | |
|---|---|---|---|
|
|
TN1235: Overview of the ST-LINK embedded in STM32 MCU Nucleo, Discovery Kits and Eval Boards | 1.0 | 155 KB |
User Manuals
| Description | Version | Size | |
|---|---|---|---|
|
|
UM1690: Discovery kit for STM32 F0 series with STM32F072RB MCU | 2.1 | 1 MB |
|
|
UM2052: Getting started with STM32 MCU Discovery Kits software development tools | 1.0 | 1 MB |
|
|
UM1715: Getting started with STM32F072 Discovery kit software development tools | 1.1 | 1 MB |
Presentations & Training Material
Presentations
| Description | Version | Size | |
|---|---|---|---|
|
|
STM32 Development Boards Portfolio | 1.0 | 3 MB |
Hardware Resources
Board Manufacturing Specifications
| Description | Version | Size | |
|---|---|---|---|
|
STM32F072B-DISCO gerber files | 1.0 | 1 MB |
Bill of Materials
| Description | Version | Size | |
|---|---|---|---|
|
|
STM32F072B-DISCO BOM | 1.0 | 10 KB |
Schematic Pack
| Description | Version | Size | |
|---|---|---|---|
|
|
STM32F072B-DISCO schematics | 1.0 | 283 KB |
Publications and Collaterals
Flyers
| Description | Version | Size | |
|---|---|---|---|
|
|
STM32 for makers - Releasing your creativity | 18.01 | 1 MB |
Brochures
| Description | Version | Size | |
|---|---|---|---|
|
|
STM32 32-bit MCU family - Leading supplier of Arm® Cortex®-M microcontrollers | 18.02 | 2 MB |
|
|
STM32F0 Series - Mainstream 32-bit MCUs | 17.07 | 1 MB |
