EVALST-ISOSD61L

Active
Design Win

Evaluation board for ISOSD61L isolated sigma-delta converter

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

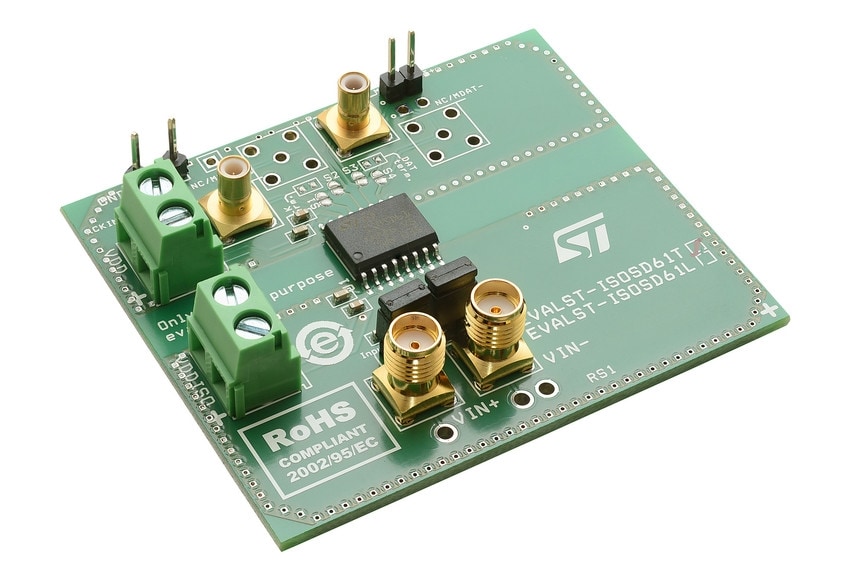

The EVALST-ISOSD61L is a full-featured evaluation board designed to allow the user to evaluate all the features of the ISOSD61L isolated analog-to-digital converter (ADC).

The ISOSD61L device is a 1-bit sigma-delta modulator with an output buffer separated from the input interface circuitry by a galvanic isolation barrier. The isolation barrier provides galvanic isolation of up to 6000 VPEAK. When used in combination with a digital filter, the ISOSD61L device can be used to achieve 16-bit analog-to-digital (A/D) conversion with no missing codes.

  • All features

    • Low voltage differential signaling
    • 6 kV galvanic isolation
    • 30 kV/µs high common-mode transient immunity
    • 16-bit resolution, no missing codes
    • ±320 mV full scale differential input signal range
    • Up to 25 MHz external clock input
    • High SNR (86 dB) and bandwidth (49 kHz)
    • –40°C to +125°C extended industrial temperature range
    • Coaxial and header pins available for flexible access to the inputs and outputs
    • LVDS digital I/O (ISOSD61L) with on-board termination resistors
    • Additional pads for the connection of a shunt current sensor

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVALST-ISOSD61L
Active
CARD Industrial Ecopack1 -

EVALST-ISOSD61L

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Order from distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
EVALST-ISOSD61L Available at distributors

Distributor availability of EVALST-ISOSD61L

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office
ISOSD61
Active
ST EAR99 NEC ITALY

EVALST-ISOSD61L Active

ECCN (US):
EAR99
Budgetary Price (US$)*/Qty:
-

Part Number:

EVALST-ISOSD61L

Core Product:

ISOSD61

Supplier:

ST

ECCN (EU):

NEC

Country of Origin:

ITALY

Distributor Name

Distributor reported inventory date:

Swipe or click the button to explore more details Don't show this again

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
