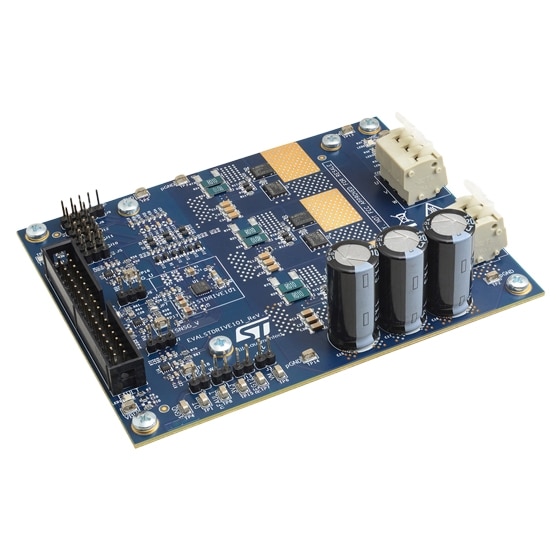

  • The EVALSTDRIVE101 is a demonstration board based on the STDRIVE101, a three-phase gate driver, and the STL110N10F7 power MOSFETs.

    The EVALSTDRIVE101 is designed to drive three-phase brushless DC motors and it can be interfaced with different STM32 microcontrollers through the motor control connector.
    The board can be configured in single shunt and three-shunt and can support FOC and six-step algorithms in both configurations.
    The Hall sensors connector and the phase sensing network present on-board allow to implement both sensor and sensorless algorithms for motion control.
    The EVALSTDRIVE101 allows a full evaluation of the STDRIVE101 and its features, including the embedded comparator for overcurrent protection and the drain-source voltage sensing of each power MOSFET.

    Key Features

    • Input bus voltage from 6 V to 75 V with dedicated monitoring
    • Output current up to 20 Arms – Power stage based on the STL110N10F7 power MOSFETs
    • STDRIVE101 embedded features:
      • Two input strategies (enable / input with adjustable deadtime generation or direct driving with interlocking)
      • VDS sensing of the power MOSFETs
      • Overcurrent protection with internal comparator
    • Three-shunt or single-shunt configurable current sensing
    • BEMF or Digital Hall sensor circuitries
    • NTC sensor for PCB temperature monitoring
    • Motor control connector compatible with a wide range of STM32 boards and systems

Recommended for you

Related Products

Power Management

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STSW-DRIVE101

      Active

      Firmware example package for the EVALSTDRIVE101

      Evaluation Tool Software ST
      STSW-DRIVE101

      Description:

      Firmware example package for the EVALSTDRIVE101

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVALSTDRIVE101
Active
CARD Industrial Ecopack1 -

EVALSTDRIVE101

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
EVALSTDRIVE101 Available at 1 distributors

Distributor availability ofEVALSTDRIVE101

Distributor Name
Region Stock Min. Order Third party link
MOUSER WORLDWIDE 7 1 Order Now

Distributor reported inventory date: 2020-11-24

Distributor Name

MOUSER

Stock

7

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2020-11-24

Buy Direct STDRIVE101
Active
ST EAR99 NEC ITALY 125.0 / 1

EVALSTDRIVE101

Core Product

STDRIVE101

Marketing Status

Active

Budgetary Price (US$)*/Qty

125.0 / 1

Distributor availability ofEVALSTDRIVE101

Distributor Name
Region Stock Min. Order Third party link
MOUSER WORLDWIDE 7 1 Order Now

Distributor reported inventory date: 2020-11-24

Distributor Name

MOUSER

Stock

7

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2020-11-24

Supplier

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

125.0 / 1

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
