EVB-T5MCM

Active
Design Win

Teseo V Triple Band Evaluation Board

Download databrief
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

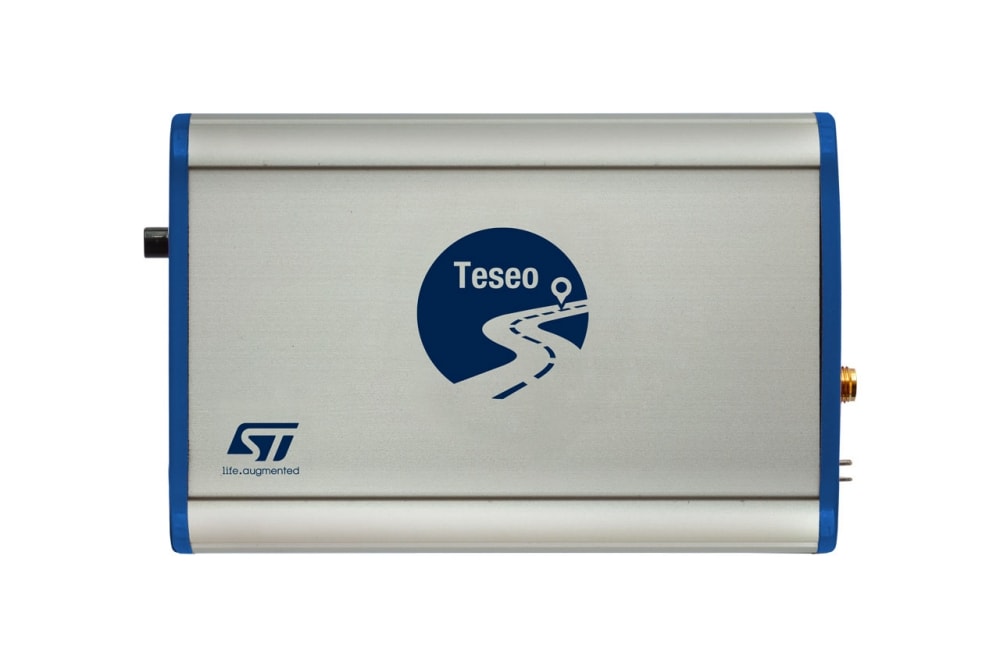

The EVB-T5MCM board is a complete standalone evaluation platform for Teseo-V STA8135GA GNSS triple band and multi constellation receiver IC solution.

The EVB-T5MCM is designed for best performance.

Boot and reset buttons allow an easy programming procedure.

The 4-pins connector allows access to the ODO/CAN signals to simplify car connection.

Teseo-V embeds the high performance ARM Cortex-M7 microprocessor with RF front-end able to support different bands (L1, L2 and L5), UART communication interfaces.

Performance and configuration can be analysed using the ST Teseo Suite PC Tool available on www.st.com.

  • All features

    • ST Teseo-V STA8135GA platform multi constellation and triple band GNSS: GPS, Galileo Glonass, BeiDou, QZSS supported
    • USB power supply
    • Buttons:
      • ON/OFF
      • Reset
      • Boot
    • NMEA over UART by USB
    • PPS output
    • Leds:
      • PPS
      • Power
      • Antenna
    • ODO/CAN connector
    • ST ASM330LHH MEMS
