Product overview
Key Benefits
Complete plug-and-play kit
Includes all necessary components—evaluation board, antennas, USB cable, and power options—for immediate testing and development without extra hardware, using an easy-to-use PC GUI.
Multimodal connectivity and positioning
Supports NB-IoT, GNSS, and Wi-Fi positioning for advanced IoT applications requiring precise location and reliable connectivity.
Arduino® compatibility and flexible interfaces
X-NUCLEO shield form factor with Arduino® connector plus multiple interfaces (UART, ADC, GPIO) enable rapid prototyping and easy integration with various platforms.
-
All features

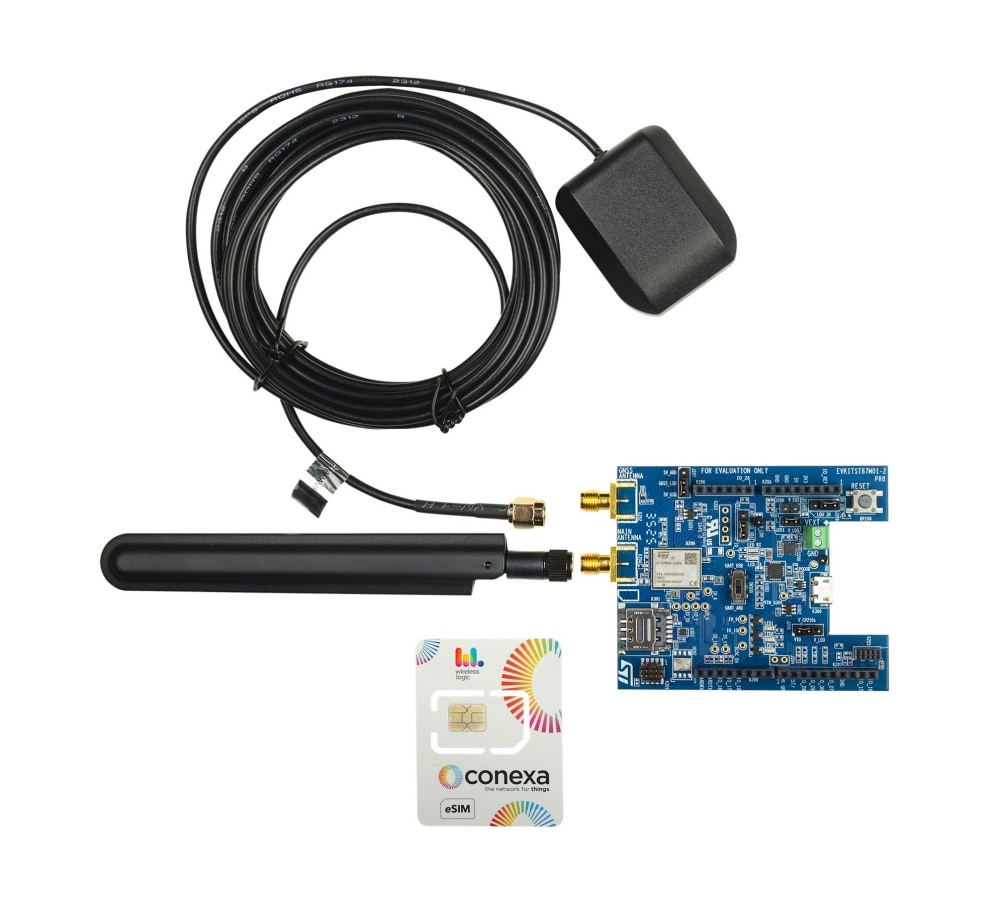

- KIT composition
- EVKITST87M01-2 board
- Micro-B USB cable
- LTE antenna
- GNSS antenna
- Board connectors
- USB connector
- SMA RF antenna connector
- SMA GNSS antenna connector
- External power supply connector
- Arduino® connectors
- HST (Trace) connector
- Nano SIM card holder
- JTAG CM4
- Three power supply connection options
- USB connector
- External connector
- Arduino® connector
- Interfaces
- UART for AT commands
- 2 x ADC
- GPIOs
- LEDs
- Three module activity LEDs
- Two UART activity LEDs
- Button
- One reset push-button
- KIT composition
