Product overview
Description

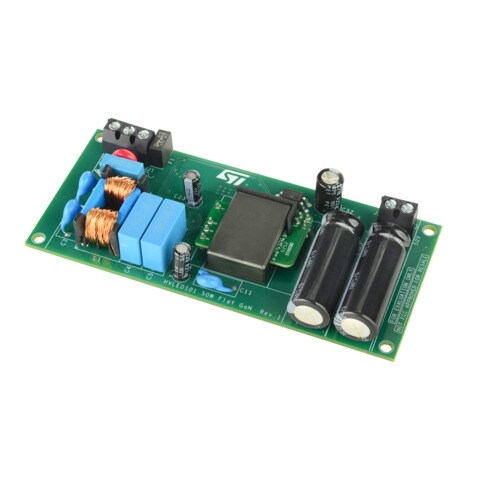

The EVL101G50FLT is a 50 W high-power-factor (HPF) quasi-resonant flyback converter with isolated secondary-side regulation for both constant voltage (CV) and constant current (CC) modes. The board is based on HVLED101 and SEA05LTR. The use of sensor-less GaN transistor (ISG6107QA) and planar transformer ensures high efficiency and compactness. The board can be used as a 50 W single-stage LED driver or PSU.
-
All features
- Input voltage: VIN: 90 - 265 VRMS, f: 45-66 Hz
- Output voltage: 50 V (Iout < 1 A)
- Output current: 1 A (LED voltage between 20 V and 48 V)
- High power factor, low THD
- PF > 0.99 / THD < 5% @ full load
- PF > 0.99 / THD < 7% @ 1/3 load (230 Vac)
- Average efficiency (4 points) > 91%
- Efficiency > 50% in stand-by (Pout = 240 mW)
- Dual layer PCB (Size 5 x 10 x 1.8 cm), no heat sink
