EVL6472

Active
Design Win

Stepper motor driver evaluation board based on the L6472 device

Download databrief

Product overview

Description

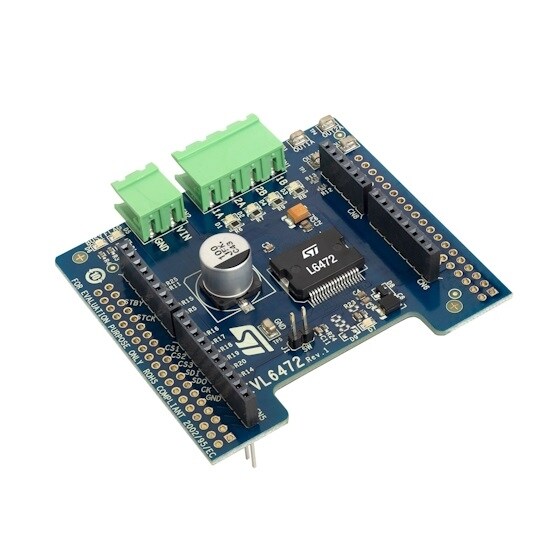

The EVL6472 is a stepper motor driver evaluation board based on the L6472.

It provides an affordable and easy-to-use solution to drive a stepper motor in your application.

The L6472 device, created using analog mixed signal technology, is an advanced, fully integrated solution suitable for driving two-phase bipolar stepper motors with microstepping. It integrates a dual low RdsON DMOS full bridge with an accurate on-chip current sensing circuitry suitable for non dissipative current control and overcurrent protection. Thanks to a new current control, a 1/16-microstepping is achieved through an adaptive decay mode which outperforms traditional implementations. The digital control core can generate user-defined motion profiles with acceleration, deceleration, speed, or target position, which are easily programmed through a dedicated set of registers. All application commands and data registers, including those used to set analog values (that is: current control value, current protection trip point, dead time, etc.) are sent through a standard 5-Mbit/s SPI.A complete set of protections (thermal, low bus voltage and overcurrent) makes the L6472 device “bullet proof”, as required by the most demanding motor control applications.

The EVL6472 is compatible with the Arduino® UNO R3 connector, and it supports the addition of other boards, which can be stacked to drive up to three stepper motors.

  • All features

    • Voltage range from 8 V to 45 V
    • Phase current up to 3 Ar.m.s
    • Power OK and fault LEDs
    • Advanced current control
    • Fully protected power stage
    • Microstepping resolution up to 1/16
    • Compatible with Arduino® UNO R3 connector
    • Suitable for multi-motor solutions
    • RoHS compliant

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVL6472
Active
CARD Industrial Not compliant -

EVL6472

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Not compliant

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
