Product overview
Description

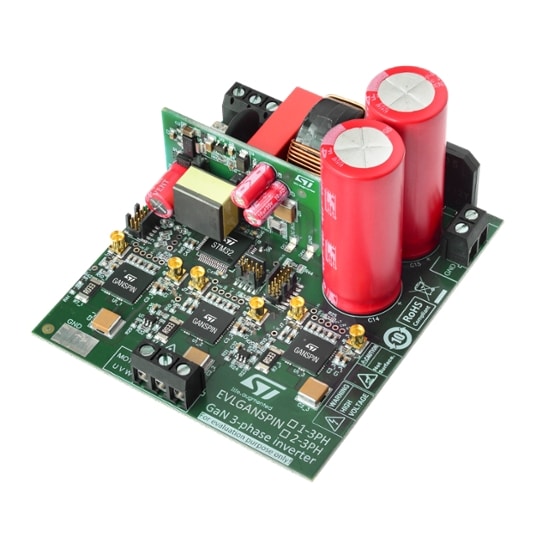

The EVLGANSPIN2-3PH is a three-phase inverter based on the GANSPIN612 half-bridge GaN system-in-package (integrating 270 mΩ 650 V e-mode HEMT GaN and the gate driver with LDOs, bootstrap diode, overcurrent protection) and the STM32G431RB with Arm Cortex®-M4 MCU at 170 MHz with 128 Kbytes of Flash memory, Math Accelerator.
The board can be used for sensorless field-oriented control (FOC), allowing driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors to cover a wide range of applications, such as refrigerator compressors, pumps, fans, and industrial appliances.
The EVLGANSPIN2-3PH is a 77 x 88 mm wide, 4-layers, 2 oz, FR-4 PCB, resulting in overall 12 °C/W Rth(J‑A) in still air (approximately 32 °C/W for a single half-bridge when operating alone).
-
All features
- Three-phase topology featuring the GANSPIN612 half-bridge system-in-package
- GANSPIN612: 2x 270 mΩ 650 V HEMT GaN + driver in 9x9 QFN with integrated LDOs, overcurrent and bootstrap diode
- STM32G431RB MCU Arm Cortex-M4 MCU 170 MHz
- 3-shunt topology for sensorless field-oriented control (FOC)
- 230 V AC mains line input filter and rectifier
- Typical power up to 300 W, 16 kHz
- Tuned at 10 V/ns dV/dt for EMI and motor reliability
- Interfaces: UART, Hall position sensors, SWD
- Three available supply rails at 12 V, 5 V, 3.3 V with VIPER06LS
- Shunt amplifiers with TSV911ILT 8 MHz operational amplifier
- Overcurrent protection
