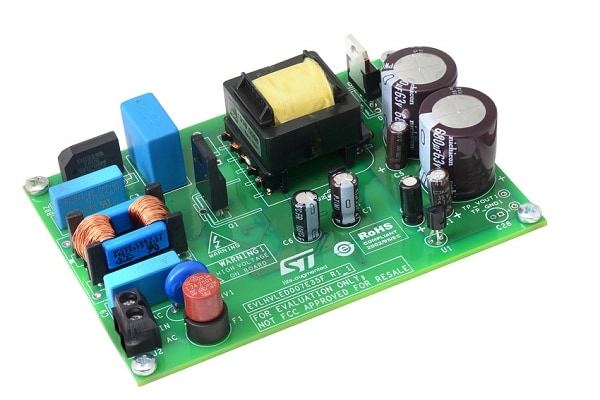

  • The EVLHVLED007W35F supplies a stable and isolated 48 V voltage bus suitable for secondary side circuitry (e.g., LED current generators) for a total output power of 35 W when a wide range of input voltages is applied at its input. An auxiliary 12 V output is also present to supply small circuits which absorb a maximum current of 15 mA.

    Thanks to an STMicroelectronics patented control embedded on HVLED007, the main feature of this design is the very low input current distortion (THD) in flyback converter operating in Transition mode (Quasi-Resonant).
    Fast startup and protections with auto-restart are available for safe operation in lighting environments.

    Key Features

    • AC input voltage from 90 V to 265 V (frequency range 45 - 66 Hz)
    • Isolated DC bus voltage (Flyback topology): 48 V / 730 mA max.
    • High Power Factor Flyback with very low THD: 100 AC: PF>0.99, THD<3% @ full load 230 AC: PF>0.98, THD<5% @ full load
    • Efficiency: >89 % @ full load
    • Mains harmonics: meets EN61000-3-2 and JEITA-MITI Class-C
    • EMI: according to EN55022 Class-B
    • RoHS compliant

Recommended for you

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3810
      35W LED driver with very low THD, based on HVLED007 transition mode flyback controller
      1.0
      229.03 KB
      PDF
      DB3810

      35W LED driver with very low THD, based on HVLED007 transition mode flyback controller

    • Description Version Size Action
      AN5335
      35W transition-mode flyback converter with ultra-low THD based on HVLED007
      1.2
      3.36 MB
      PDF
      AN5335

      35W transition-mode flyback converter with ultra-low THD based on HVLED007

Legal

    • Description Version Size Action
      Terms of use 1.7
      57.54 KB
      PDF

      Terms of use

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVLHVLED007W35F
Active
CARD Industrial Ecopack1 -

EVLHVLED007W35F

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
