EVLMG4-500WIBCK

Active
Design Win

High power inverse buck for dimmable LED application with MASTERGAN4, HVLED002 and VIPER06XS

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

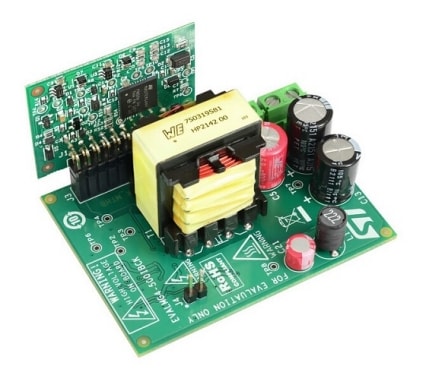

This document describes the EVLMG4-500WIBCK evaluation board, designed to drive a dimmable LED load with a GaN-based, synchronously rectified inverse buck topology; the switching element and diode are replaced by MASTERGAN4, mounted on a daughterboard to obtain a compact and scalable application. The HVLED002 controller manages the inverse buck mainly composed by T1 and MASTERGAN4. The supply of the HVLED002 is generated by ViPer06XS, that converts the input voltage of the buck to the voltage needed at Vdd pin, eliminating the need of an external power supply.
The circuit is configured to generate 1 A, but different output currents are selectable changing the shunt resistor combination on the daughterboard with the MASTERGAN4.
The board operates with 400 V input voltage and output voltage range between 150 V and 350 V.
A dimming circuit is present on the board. It consists of two circuits: the analog and PWM circuit. It enables the regulation of the output current between the 100% and 0%.
The over voltage and short circuit protection are guaranteed.
  • All features

    • Input voltage: Vin = 400 Vdc, Vdim = 10 Vdc
    • Output voltage range: 150 V – 350 V
    • Output current: 0.7 A – 1 A – 1.3 A, selectable with shunt resistor
    • High precision output current, with output current variation lower than 5%
    • High efficiency up to 99.4% @Iout = 1 A Vout = 350 V
    • No heatsink required
    • Dimming between 0% - 100%
    • PCB dimension: 48.7 mm x 65.1 mm x 37 mm
      • Motherboard: 48.7 mm x 65.1 mm
      • Daughterboard: 30 mm x 40 mm
    • RoHS compliant

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVLMG4-500WIBCK
Active
CARD Industrial Ecopack1 -

EVLMG4-500WIBCK

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Order from distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
EVLMG4-500WIBCK Available at 2 distributors

Distributor availability ofEVLMG4-500WIBCK

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 8 1 Buy from Distributor
MOUSER WORLDWIDE 9 1 Buy from Distributor

Distributor reported inventory date: 2022-08-17

Distributor Name

DIGIKEY

Stock

8

Min.Order

1

Region

WORLDWIDE Buy from Distributor

MOUSER

Stock

9

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Distributor reported inventory date: 2022-08-17

MASTERGAN4
Active
ST EAR99 NEC ITALY Stock available

EVLMG4-500WIBCK Active

ECCN (US):
EAR99
Budgetary Price (US$)*/Qty:
-

Part Number:

EVLMG4-500WIBCK

Core Product:

MASTERGAN4

Supplier:

ST

ECCN (EU):

NEC

Country of Origin:

ITALY

Board production status:

Stock available

Distributor availability ofEVLMG4-500WIBCK

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 8 1 Buy from Distributor
MOUSER WORLDWIDE 9 1 Buy from Distributor

Distributor reported inventory date: 2022-08-17

Distributor Name

DIGIKEY

Stock

8

Min.Order

1

Region

WORLDWIDE Buy from Distributor

MOUSER

Stock

9

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Distributor reported inventory date: 2022-08-17

Swipe or click the button to explore more details Don't show this again

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
