EVLPWD5T60

Active
Design Win

Evaluation board for the PWD5T60 compact high-voltage 3-phase power stage with integrated gate driver

Download databrief Order Direct

Product overview

Description

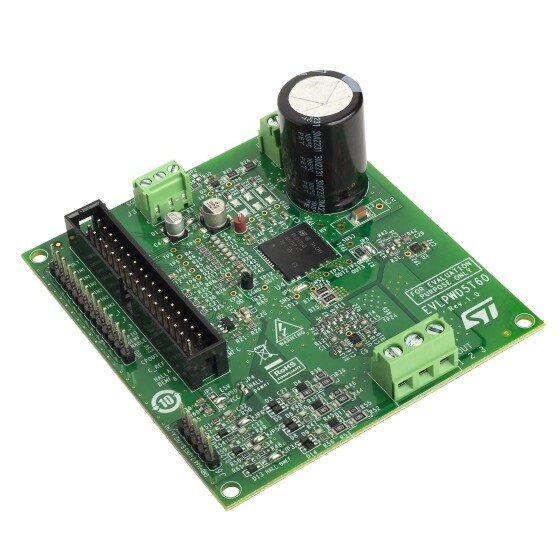

The EVLPWD5T60 evaluation board is a 3-phase power board that allows to evaluate all of the PWD5T60 features.

The board is designed to support a three-shunt or a single-shunt current sensing topology.

A strip connector allows easy interfacing with an MCU control board. The 34-pin ST morpho allows to connect the EVLPWD5T60 board to an STM32 Nucleo board through the X-NUCLEO-IHM09M1 motor control connector expansion board.

The PWD5T60 is a 3-phase high-density power driver integrating gate driver and six N-channel power MOSFETs. It has dedicated input pins for each output and a shutdown pin. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing with control devices.

  • All features

    • High-voltage rail up to 400 VDC (limited by on-board bulk capacitor)
    • Output current up to 1.2 Apeak (adjustable overcurrent protection threshold)
    • Output power up to 120 W
    • Driver DC input voltage range: 9 V to 20 V
    • Power system-in-package integrating gate drivers and high-voltage power MOSFETs:
      • RDS(ON) = 1.38 Ω
      • BVDSS = 500 V
    • Selectable single or three-shunt current sensing topology
    • Sensored or sensorless FOC or 6-step algorithm
    • Hall effect sensor connector
    • Smart shutdown overcurrent protection
    • Bus voltage sensing
    • Connector for interfacing with MCU
    • RoHS compliant
