Product overview
Description

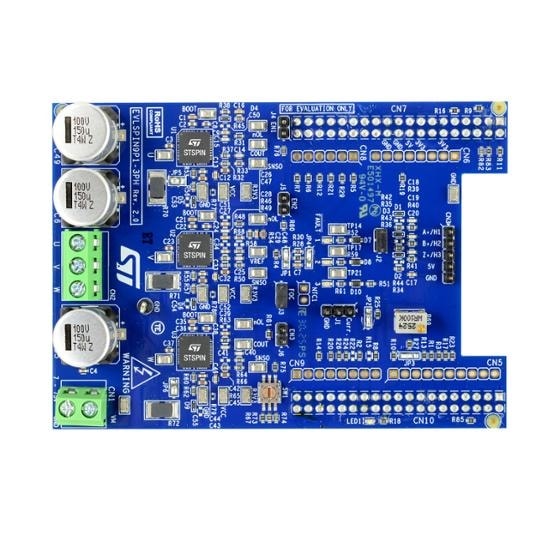

The EVLSPIN9P1-3PH demonstration board is a three-phase power board, which allows to evaluate all STSPIN9P12 features.
The board is designed to support a three-shunt or single-shunt current sensing topology.
The board can be stacked with an X-NUCLEO MCU control board through ST morpho connectors and drive BLDC/PMSM motors exploiting off-the-shelf firmware libraries.
The STSPIN9P12 is a high-density power driver integrating gate drivers and two N-channel power MOSFETs in half-bridge configuration.
The device has dedicated input pins for each output and one enable pin. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing with control devices.
-
All features
- 3-phase driver for BLDC/PMSM motors
- STSPIN9P12 power system-in-package integrating gate driver and high-current power MOSFETs with RDS(ON) = 27 mΩ
- 7 V to 75 V operating voltage
- Up to 10 Arms output current
- Operating frequency up to 100 kHz
- Programmable output slew rate
- Compatible with STM32 Nucleo boards
- Fully compatible with STM32 motor control SDK
- Equipped with ST ST morpho
- Three-shunt or single-shunt configurable jumpers for motor current sensing topology
- Hall / encoder motor sensors connector and circuit
- Potentiometer available for speed regulation
- User LED
- Open-load detection
- Thermal shutdown, UVLO, and overcurrent protection
- Bus voltage sensing
- Standby mode
- X-NUCLEO form factor with Arduino® connectors (not mounted by default)
- RoHS compliant
