Product overview
Description

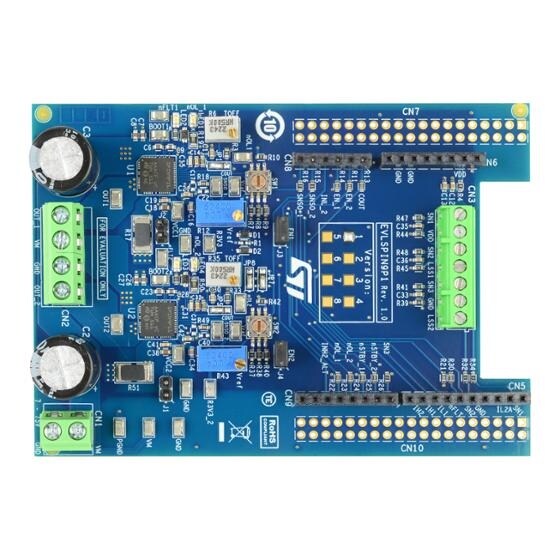

The EVLSPIN9P1 demonstration board is a dual half-bridge power board, which allows the evaluation of all STSPIN9P1 features.
The board is designed to support a single shunt current sensing topology (one for each device).
The board can be stacked with an X-Nucleo MCU control board through Arduino® connectors, or driven directly by external pins.
The STSPIN family is growing with the introduction of the STSPIN9P series. The STSPIN9P1 is a high-density power driver integrating gate drivers and two N-channel power MOSFETs in half-bridge configuration.
The device has dedicated input pins for each output and one enable pin. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing with control devices.
-
All features
- Power system-in-package integrating gate driver and high-current power MOSFETs:
- RDS(ON) = 16 mΩ or 27 mΩaccording to the selected part number
- Up to 75 V and 10 Arms / 6 Arms output current
- Programmable output slew rate
- Two input modes (EN/IN or INH/INL)
- Single shunt current sensing topology
- Integrated current limiter with adjustable reference
- Uncommitted comparator output (for specific part numbers) for external trigger (cycle-by-cycle current regulation)
- Input connector for 3 external sensors (e.g. Hall-effect based sensors)
- Open-load detection
- Thermal shutdown, UVLO, and overcurrent protection
- Standby mode
- X-Nucleo form factor with Arduino® connectors
- RoHS compliant
- Power system-in-package integrating gate driver and high-current power MOSFETs:
