EVLSRK1001-TO

Active

SRK1001 adaptive synchronous rectification controller for flyback converter demonstration board with SR MOSFET

Download databrief Sample & Buy
Overview
Sample & Buy
Solutions
Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

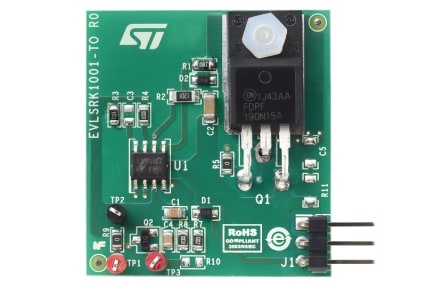

  • The EVLSRK1001-TO is a demonstration board, designed for evaluation of the SRK1001 synchronous rectification controller.

    The SRK1001 implements a control scheme specific for secondary-side synchronous rectification in flyback converters and provides high-current gate-drive outputs for driving N-channel Power MOSFET. The device can operate both in quasi-resonant (QR) applications and in fixed frequency (FF) mixed DCM-CCM applications. The board is provided with a setting suitable for QR application. To use in FF applications, a 100 pF capacitor needs to be added in C3. A 120 kΩ resistor (R3) is provided on the TON pin that fixes the blanking after the turn-on to about 1.44 μs. The blanking time after turn-off is set to 3 μs through a 100 kΩ resistor (R4) on TOFF pin.
    In order to use the DIS/SYNC pin functionality, the user has to remove the zero ohm resistor R9: the PCB already provides a npn transistor connected to this pin for remote ON/OFF.
    The board includes the SR MOSFET (TO220FP package) and can be easily implemented into an existing converter to substitute rectifier diodes.

    Key Features

    • Synchronous rectifier for flyback converter, with fixed turn-on and adaptive turn-off
    • Vcc range: 3.5 V to 32 V
    • DVS sensing voltage: 185V AMR
    • Max frequency: 500 kHz
    • Internal gate drive for N-channel MOSFET
    • SR MOSFET type: FDPF190N15A (150 V – 19 mΩ) TO220FP

Recommended for you

Related Products

Power Management

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3956
      SRK1001 adaptive synchronous rectification controller for flyback converter demonstration board with SR MOSFET
      1.0
      2.64 MB
      PDF
      DB3956

      SRK1001 adaptive synchronous rectification controller for flyback converter demonstration board with SR MOSFET

    • Description Version Size Action
      AN5333
      SRK1001 adaptive synchronous rectification controller for flyback converters evaluation board family
      1.0
      1.75 MB
      PDF
      AN5333

      SRK1001 adaptive synchronous rectification controller for flyback converters evaluation board family

Publications and Collaterals

    • Description Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      842.88 KB
      PDF

      eDesignSuite-The smart way to design your application

Legal

    • Description Version Size Action
      Terms of use 1.7
      57.54 KB
      PDF

      Terms of use

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVLSRK1001-TO
Active
CARD Industrial Ecopack1 -

EVLSRK1001-TO

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
