Product overview
Description

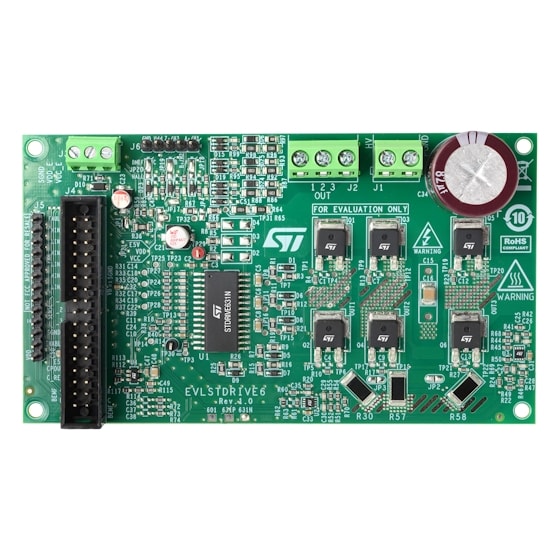

The EVLSTDRIVE631P and EVLSTDRIVE631N demonstration boards are complete
3-phase inverters that allow evaluating the STDRIVE631P or STDRIVE631N features. The power stage features STGD6M65DF2 IGBTs, but can be populated with any IGBT or power MOSFET in DPAK or PowerFLAT 8x8 HV package. The boards are designed to support a three-shunts or a single-shunt current sensing topology.
A strip connector allows an easy interfacing with MCU control.
The STDRIVE631P and STDRIVE631N are a 600 V gate drivers. The device is a single chip with three half-bridge gate drivers for N-channel power MOSFETs or IGBTs, suitable for three-phase applications. It integrates three bootstrap diodes and a smart shutdown feature that detects very fast overcurrent conditions. This feature minimizes the propagation delay between the overcurrent event and the output switch-off.
-
All features
- High-voltage rail up to 600 V
- Driver supply input voltage range 9.5 V - 20 V
- STGD6M65DF2 IGBTs power stage featuring:
- V(BR)CES = 650 V
- VCE(sat) = 1.55 V @ IC = 6 A
- Dual footprint for IGBT/MOSFET package:
- DPAK
- PowerFLAT 8x8 HV
- Selectable single or 3-shunt current sensing topology:
- Sensored or sensorless BEMF detection
- FOC or 6-Step algorithm
- SmartShutdown overcurrent protection
- Hall effect sensors connector
- Bus voltage sensing
- 450 V bulk capacitor
- Connector for interfacing with MCU
- RoHS compliant
