Product overview
Description

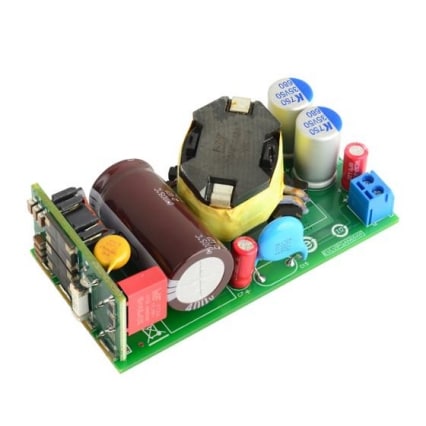

The EVLVIPGAN65WF is a 24 V / 65 W reference design set in isolated QR flyback topology, based on the VIPERGAN65W high-voltage converter. This controller combines a low-voltage PWM controller chip with a 700 V GaN HEMT in the same package and integrates:
- a complete set of features which help design high-efficiency and low-standby-consumption SMPS with a short bill of materials, for cost-effective and fast design: ZVS quasi-resonant operation with dynamic blanking time; feedforward compensation; valley synchronization adjustment; low quiescent current; advanced light load management.
- a complete set of protections which considerably increase end-product safety and reliability: output overvoltage protection (OVP), output overload/short-circuit protection (OLP), brown-in/out protection, input overvoltage protection (iOVP).
To increase the system efficiency, the secondary side rectification is implemented through a power MOSFET driven by the SRK1001 adaptive synchronous rectification controller.
-
All features
- Input voltage range: universal AC from 90 - 265 VAC with 50 Hz - 60 Hz frequency
- Maximum output power: 65 W
- Output voltage: 24 VDC
- Output current: 2.7 A
- Peak efficiency: > 92 %
- Key products: Power GaN IC: VIPERGAN65W; SR IC: SRK1001
