EVSPIN948
Active
Design Win
Dual brushed DC motor driver expansion board based on STSPIN948

Save to myST
Download databrief
Order Direct

Product overview

Description

The EVSPIN948 dual brushed DC motor driver evaluation board is based on the STSPIN948.

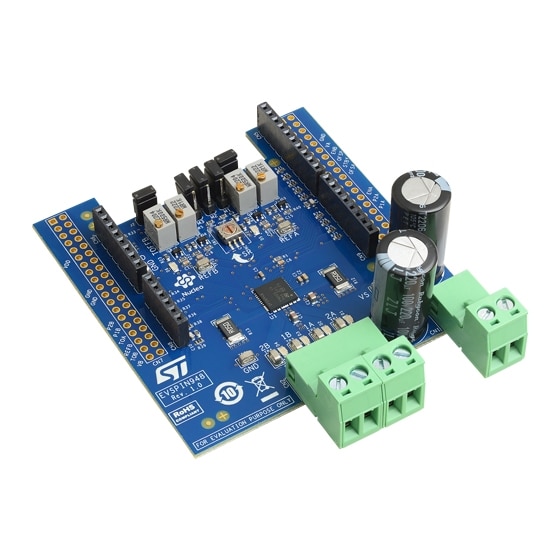

EVSPIN948 ILLUSTRATION

It provides an affordable and easy-to-use solution for the implementation of brushed DC motor driving applications. Thanks to the parallel operation, it can be easily converted to a single brushed DC motor driver with double current capability. In addition to the internal current limiter, the integrated amplifiers allow it to be used in systems with external current control. The EVSPIN948 is compatible with the Arduino® UNO R3 connector and most STM32 Nucleo boards.

  • All features

    • Voltage range from 5 V to 58 V
    • Phase current up to 4.5 A r.m.s
    • Adjustable output slew rate
    • Five different driving modes
    • Current limiter with adjustable off-time
    • Two integrated amplifiers with fixed gain
    • Full protection set including: overcurrent, undervoltage lockout, and thermal shutdown
    • Compatible with Arduino® UNO R3 connector and STM32 Nucleo boards
    Read more Read less
