Product overview
Description

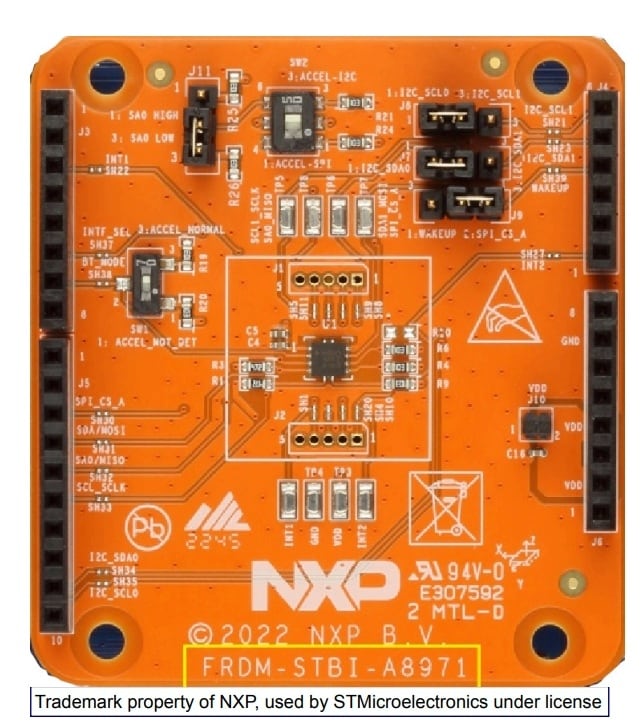

The FRDM-STBI-A8971 is a sensor add-on/expansion shield board for FXLS8971CF 3-axis low-power accelerometer with excellent offset and sensitivity stability over temperature.
The FRDM-STBI-A8971 sensor shield board is kitted with a LPC55S16-EVK or FRDM-K22F MCU board to enable quick customer evaluation of FXLS8971CF using sensor toolbox enablement SW and tools.
-
All features
- Sensor evaluation board for FXLS8971CF 3-axis accelerometer designed for use in a wide range of industrial and medical IOT applications that require better offset and sensitivity stability over temperature. Offered as sensor kit with LPC55S16-EVK or FRDM-K22F
- Enables quick sensor evaluation and helps accelerate quick prototyping and development using FXLS8971CF 3-axis accelerometer
- Compatible with Arduino® and most NXP Freedom development boards
- Supports I2C and SPI communication interface with host MCU
- Supports hardware configurability to switch between accelerometer mode (normal vs. motion detect) and I2C/SPI interface mode
- Supports multiple test points on shield board
You might also like...
All resources
| Resource title | Version | Latest update |
|---|
Board Manufacturing Specifications (1)
| Resource title | Version | Latest update | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2026 | 27 Jan 2026 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| FRDM-STBI-A8971 | Evaluation | CARD | Industrial | Ecopack2 | - | - | - | |
FRDM-STBI-A8971
Package:
CARDMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | Marketing Status | Budgetary Price (US$)*/Qty | Order from ST | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRDM-STBI-A8971 | | | distributors No availability of distributors reported, please contact our sales office |
|
|
FRDM-STBI-A8971 Evaluation
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
