P-NUCLEO-USB002

Active

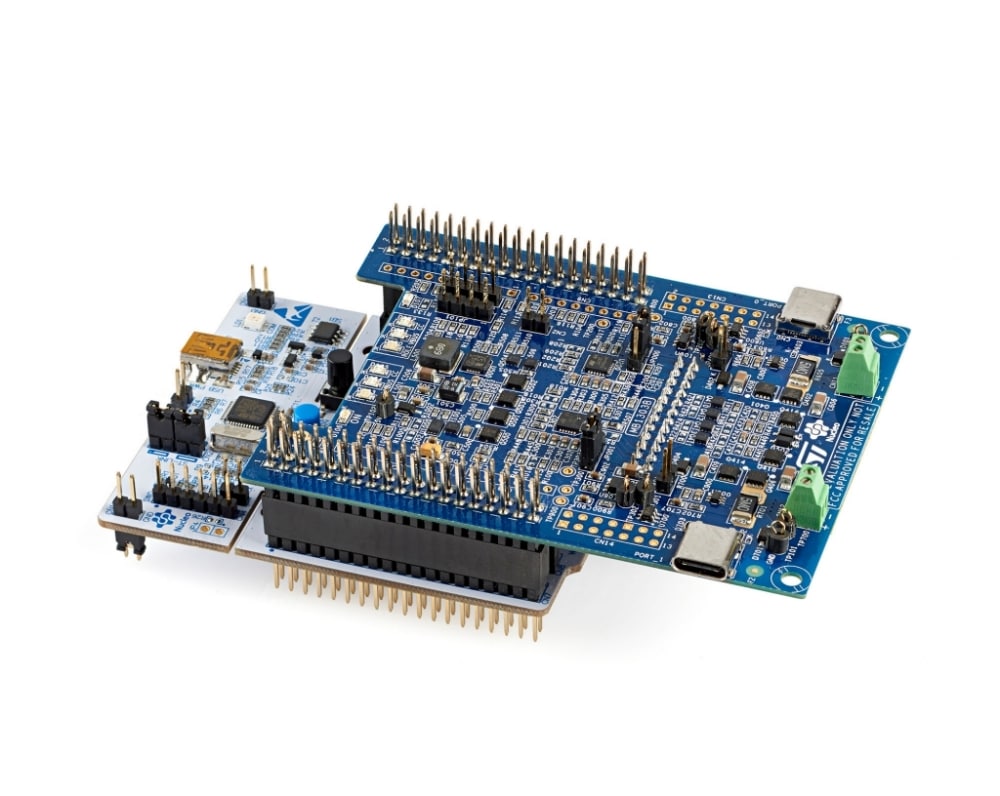

STUSB1602 USB Type-C and Power Delivery Nucleo Pack with NUCLEO-F072RB

Download databrief
Overview
Sample & Buy
Solutions
Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase
  • The STM32 Nucleo pack is designed for USB Type-C™ and Power Delivery specifications.

    Used with the embedded X-CUBE-USBPD certified software, the P-NUCLEO-USB002 represents a development tool enabling fast prototyping of USBPD applications leveraging ready-to-use ST componentry and software.
    The P-NUCLEO-USB002 kit is designed to exploit the performance of the STM32F072 32-bit microcontroller based on ARM® Cortex®-M0 and two STUSB1602 USB Type-C™ port controllers, to develop applications managing up to two USB Type-C™ ports.
    The STUSB1602 is a Type-C™ controller designed with 20-V technology that integrates a fully-featured USB Type-C state machine and a USBPD PHY + BMC driver. This analog front end features: Type-C™ attach and cable orientation detection; source / sink / DRP power role configuration; integrated VCONN power switch; integrated VBUS and VCONN discharge path; high voltage protection (including CC pins); VBUS switch gate drivers.
    The P-NUCLEO-USB002 is fully configurable and ready to support different power roles such as: provider, consumer or DRP.
    The X-CUBE-USBPD is compliant with the USB Type-C™ 1.3 and USB Power Delivery 2.0 and 3.0 specifications.

    Key Features

    • 32-bit ARM® Cortex®-M0-based microcontroller STM32F072RB with 128 kB Flash and 16 kB SRAM
    • Dual port solution based on certified USB Type-C™ port controller STUSB1602, featuring:
      • Type-C FSM with attach/detach and cable orientation detection
      • USB PD PHY and BMC transceiver
      • High voltage (20 V) technology
      • VBUS voltage monitoring
      • 600 mA VCONN power switch
      • VBUS and VCONN discharge paths
      • Dead-battery support
      • 22 V CC line protection
      • VBUS switch gate drivers
    • Power connector to interface with external power supply (not included)
    • USB 2.0 full speed data communication interface
    • RoHS compliant
