ST25-TAG-BAG-AB

Active
Design Win

Tag bag for ST25TV512C & ST25TV02KC NFC tags

Download databrief
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

The ST25-TAG-BAG-AB is a ready-to-use tag set, containing tags based on NFC Forum Type 5 tag ICs (ST25TV512C and ST25TV02KC). These ICs are combined with antennas of different size and material, with advanced designs (like tamper detect), to address different applications.

The set is intended for evaluation of the ST25TV series NFC tags, belonging to the ST25T product family, offering long range (ISO/IEC 15693) NFC/RFID tags with advanced features and 512- and 2 K-bit memory sizes.

More info on devices of the ST25TV series can be found on the ST25TV webpage.

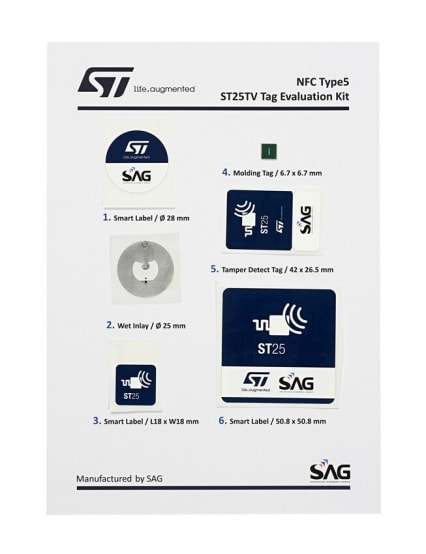

  • All features

    • One ST25TV512C smart label, 28 mm diameter
    • One ST25TV512C wet inlay, 28 mm diameter
    • One ST25TV02KC smart label, 18 mm x 18 mm
    • One ST25TV02KC molding tag, 7.5 mm x 7.5 mm
    • One ST25TV02KC tamper detect tag, 42 mm x 26.5 mm
    • One ST25TV02KC smart label, 50.8 mm x 50.8 mm

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
ST25-TAG-BAG-AB
Active
CONTRACTS Industrial Ecopack2 -

ST25-TAG-BAG-AB

Package:

CONTRACTS

Material Declaration**:

Marketing Status

Active

Package

CONTRACTS

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Order from distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
ST25-TAG-BAG-AB Available at distributors

Distributor availability of ST25-TAG-BAG-AB

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office
-
Active
- EAR99 NEC CHINA

ST25-TAG-BAG-AB Active

ECCN (US):
EAR99
Budgetary Price (US$)*/Qty:
-

Part Number:

ST25-TAG-BAG-AB

Core Product:

-

Supplier:

-

ECCN (EU):

NEC

Country of Origin:

CHINA

Swipe or click the button to explore more details Don't show this again

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
