Product overview
Description

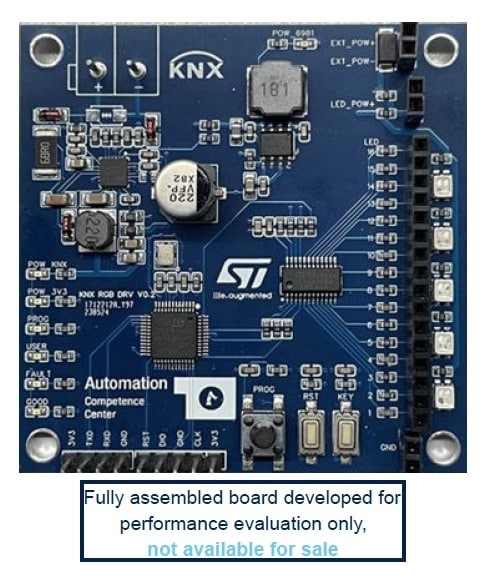

The STDES-KNXRGBDRV is a KNX presence sensor board with STKNX as KNX device transceiver and STM32G070CB as main controller.
The board integrates LED1642GW.
For driver RGB LED, five onboard RGB lights are powered by STKNX.
An open SDK with a third-party KNX stack and an ETS database were available for this board.
You can use the SDK and ETS DD for study and estimation.
An SWD interface and a UART interface on the board for programming and debugging.
The standard KNX programming button and LED are present on the kit. In addition, four LEDs are available to indicate sensor status.
-
All features
- KNX RGBDRV based on the STKNX miniature transceiver
- Controlled by STM32G070CB microcontroller 32-bit Cortex®-M0+ MCU with 64 MHz - 128 KB flash
- LED1642GWPTR was integrated to drive five RGB lights
- Five onboard RGB lights are powered by STKNX
- Compatible with ETS engineering tool software
- Test firmware already downloaded on the board to demonstrate features
- Standard serial wire debug (SWD)
- One button and one LED for KNX programming
- Additional power supply to the sensor board is not needed
- Operating temperature range -40 to +85° C
- An open SDK with ETS database is available
