Product overview
Description
The main objective of the STM32WBxM reference design is to recommend a layout and associated BOM for dedicated applications (this board is not for sale).
This reference design can be manufactured from files available for download from the www.st.com website. The access to all GPIOs allows the prototyping of a complete application.
Sensitive layout parts can be extracted and pasted in any user board design with the same PCB characteristics and feature set.
The STM32WBxM reference design is provided with the STM32WB series comprehensive software HAL library. The STM32CubeWB MCU Package contains many software examples developed with the STM32WB series Nucleo-64 boards. These examples can be easily adapted for the STM32WBxM reference design.
-
All features
- Includes ST state-of-the-art patented technology
- Reference design

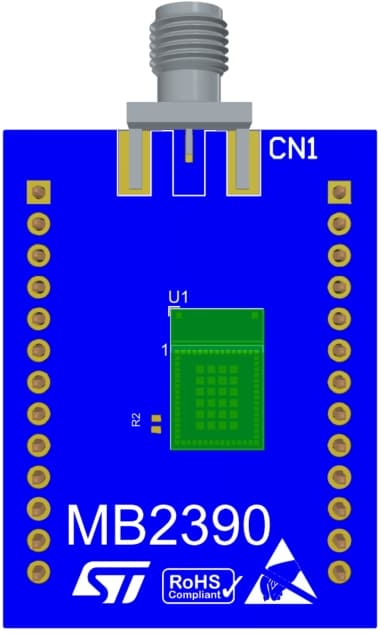

- Module RF board
- STM32WBxM module
- STM32WB5MMG module in an LGA package
- 2.4 GHz transceiver supporting Bluetooth® specification v5.4
- Dedicated Arm® Cortex®‑M0+ processor for real-time radio layer
- Connectors
- RF SMA for antenna
- Two 13-pin miniboard headers
- Debugging/Programming
- Suitable for ST-LINK/V2 and STLINK-V3 debuggers/programmers with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Software
- Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
All resources
| Resource title | Version | Latest update |
|---|
Board Manufacturing Specifications (2)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2025 | 27 Jan 2025 | |
| ZIP | 1.0 | 27 Jan 2025 | 27 Jan 2025 |
Bill of Materials (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2025 | 27 Jan 2025 |
Schematic Pack (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 27 Jan 2025 | 27 Jan 2025 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Material Declaration** |
|---|---|---|---|---|---|---|
| STDES-WB5M2L | Active | - | Industrial | - | - | |
STDES-WB5M2L
Package:
-Material Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
