STEVAL-10MLPVCB
Active
Design Win
10 kW multi-level converter with dual channel MPPT

Save to myST
Download databrief

Product overview

Key Benefits

ORDER Info

Please contact ST to provide your specific requests and get your custom built board(s).

Description

The STEVAL-10MLPVCB is a 10 kW multilevel buck/boost converter with MPPT evaluation system.

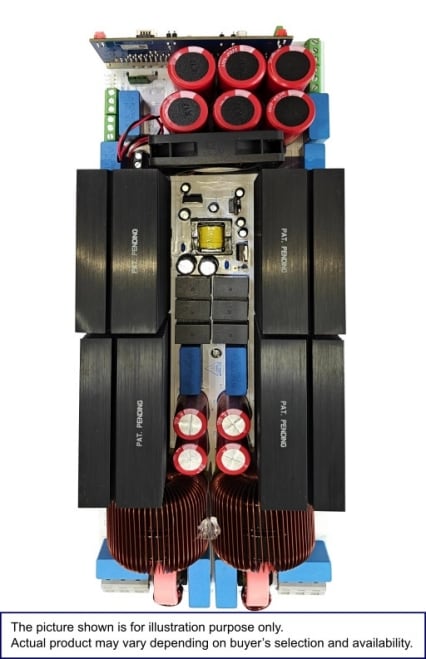

STEVAL-10MLPVCB IMAGE

It is based on a three-level power stage that is configured using flying capacitors and SiC 650 V MOSFETs in buck/boost mode.

In buck mode, the input voltage range is 425-850 V and the nominal output voltage is 400 V, with active current sharing on a common 400 V dc bus for feeding the battery bank or an inverter.

The same evaluation board can function as a boost mode with a nominal output voltage of 800 V and an input voltage range of 250-800 V by changing a few resistors in hardware and firmware for boost operation.

The STEVAL-10MLPVCB includes dual independent input channels and achieves a peak power conversion efficiency of > 99% using a perturb and observe MPPT algorithm.

A single 32-bit STM32G474RE Arm MCU controls MPPT, dual-channel conversion, flying capacitor balancing, output regulation and protection mechanisms.

The evaluation board is targeted at renewable and energy storage applications.

  • All features

    • MPPT range: 280/450V – 850 V array input
    • Output power (nominal): 7/10kW
    • Output voltage (nominal): 400/800V
    • Efficiency > 99% peak, 98.5% full power
    • Input voltage disconnect: <400/250V
    • Two channels or parallel configuration
    • Comprehensive safety mechanisms
