STEVAL-4KNXDVCB

Evaluation
Design Win

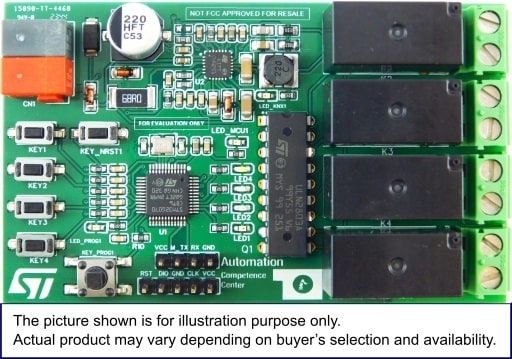

Design board for 4 channels KNX actuator device applications

Download databrief

Product overview

Key Benefits

Order Info

Please contact ST to provide your specific requests and get your custom built board(s).

Description

This STEVAL-4KNXDVCB is a designed board with STKNX as KNX device transceiver, low power STM32G070CB as main controller, ULN2803A as relay driver chip.

The STEVAL-4KNXDVCB runs with the KNX protocol.

With the use of STKNX, KNX signals can be transmitted between KNX BUS and MCU.

The microcontroller can be programmed by a dedicated SWD 5-pin connector.

The ULN2803A can provide an output voltage 50 V and current 500 mA.

This STEVAL-4KNXDVCB can use ETS software to set parameters to enable manual control and adjust action delay time of each channel.

Important:

These evaluation boards are custom designed and built, in small quantities, according to specific requests from customers and are destined for evaluation and testing of ST products in a research and development setting. Please contact ST to provide your specific requests and get your custom built board(s).

  • All features

    • Input DC voltage: 21-32 VDC (KNX Bus)
    • KNX 4 channels switch on/off input
    • KNX 4 channels Relay output
    • 4 keys and 4 LEDs indicator
    • 4 Relays parameter:12 V, 500 mW, Magnetic holding
    • BUS control and manual control
    • Adjustable parameter of action delay of each channel
