10 W + 10 W class-D audio amplifier demonstration board based on the TDA7491P

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

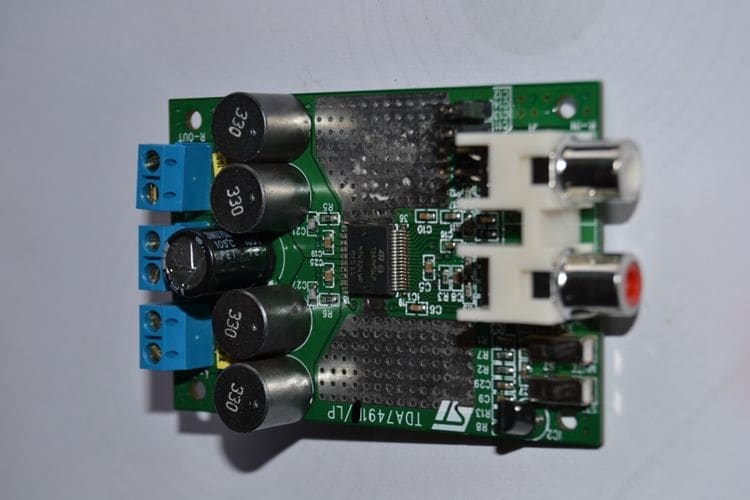

  • The STEVAL-CCA028V1 demonstration board is designed for the TDA7491P high-power dual BTL class-D audio amplifier.

    Thanks to its high efficiency, the device assembled in the PSSO36 (slug-down) package is capable of dissipating heat without any heatsink.
    Jumpers on the board allow configuring the amplifier in order to verify all the features as single-ended or differential inputs, fixed gain settings.
    Microswitches are also provided to enable the standby and mute functions.

    Key Features

    • 10 W +10 W continuous output power at THD = 10%, RL= 6 Ω, VCC = 11 V
    • 9.5 W + 9.5 W continuous output power at THD = 10%, RL= 8 Ω, VCC = 12 V
    • Wide-range single-supply operation (5-18 V)
    • High efficiency (η = 90 %)
    • Four selectable, fixed gain settings (20 dB, 26 dB, 30 dB and 32 dB)
    • Differential inputs to minimize common-mode noise
    • Filterless operation
    • Standby and mute features
    • Short-circuit and thermal overload protections
    • Externally synchronizable
    • RoHS compliant

Sample & Buy

Part Number
Marketing Status
Budgetary Price (US$)*
Quantity
Core Product
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-CCA028V1
Active
85.0 1 TDA7491P EAR99 ITALY Check Availability

Distributor availability ofSTEVAL-CCA028V1

Distributor Name
Region Stock Min. Order Third party link
MOUSER WORLDWIDE 2 1 Order Now
ANGLIA Live EUROPE 1 1 Order Now

Distributor reported inventory date: 2019-08-08

Distributor Name

MOUSER

Stock

2

Min.Order

1

Region

WORLDWIDE Order Now

ANGLIA Live

Stock

1

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2019-08-08

Buy now

STEVAL-CCA028V1

Marketing Status

Active

Unit Price (US$)

85

Unit Price (US$)

85.0*

Distributor availability ofSTEVAL-CCA028V1

Distributor Name
Region Stock Min. Order Third party link
MOUSER WORLDWIDE 2 1 Order Now
ANGLIA Live EUROPE 1 1 Order Now

Distributor reported inventory date: 2019-08-08

Distributor Name

MOUSER

Stock

2

Min.Order

1

Region

WORLDWIDE Order Now

ANGLIA Live

Stock

1

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2019-08-08

Quantity

1

Core Product

TDA7491P

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
