STEVAL-CCA057V2

Active

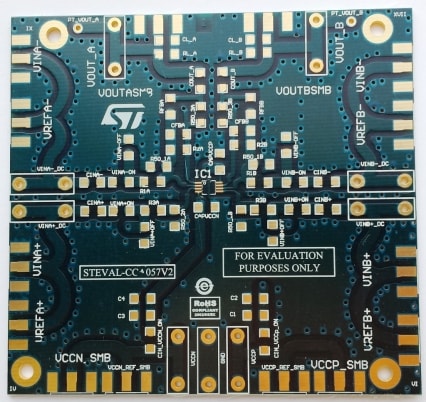

Bare PCB evaluation board for the dual operational amplifier family in an MSO8 package

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

The STEVAL-CCA057V2 evaluation board is designed to help customers quickly prototype new dual op amp circuits in an MSO8 package and reduce design time. It can be used with almost any STMicroelectronics dual op amp in various configurations and applications.
The STEVAL-CCA057V2 is a bare board. There are no components or amplifiers soldered on the board. The components must be ordered separately.
  • All features

    • The board with its components allow it to be configured as:
      • Sallen-key filter
      • Instrument amplifier
      • AC-coupled circuit
      • Out-of-loop compensation circuit
      • In loop compensation circuit
      • Transimpedance amplifier
      • Gain amplifier
      • Numerous other possible configurations
