  • The STEVAL-IDB005V1D is an RF daughterboard platform based on the BlueNRG-MS low power Bluetooth® Smart IC, compliant with the Bluetooth® 4.1 specifications and supporting both master and slave roles.

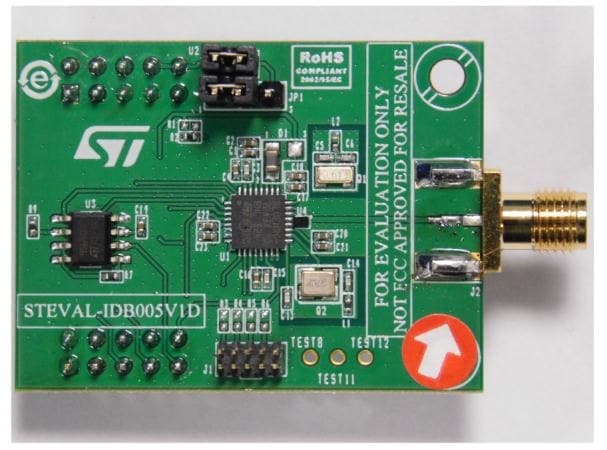

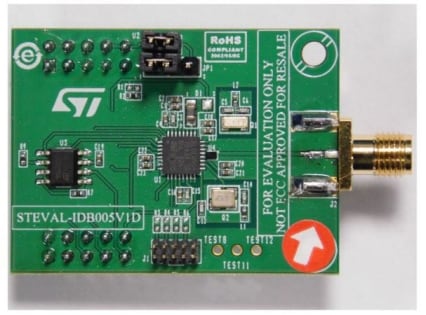

    The STEVAL-IDB005V1D RF daughterboard features the BlueNRG-MS device, an SMA connector for antennas or measuring instruments and an SPI connector for an external microcontroller. It can be connected to STM32L motherboards available with the STEVAL-IDB002V1 and STEVAL-IDB005V1 platforms.

    Key Features

    • Bluetooth® SMART RF daughterboard based on the BlueNRG-MS low energy network processor
    • Maximum transmission power +8 dBm
    • Excellent receiver sensitivity (-88 dBm)
    • Very low power consumption: 7.3 mA RX and 8.3 mA TX at +0 dBm
    • Bluetooth® low energy 4.1 compliant, supports both master and slave roles
    • RoHS compliant

Recommended for you

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB2781
      RF daughter board platform based on BlueNRG-MS
      1.0
      226.74 KB
      PDF
      DB2781

      RF daughter board platform based on BlueNRG-MS

    • Description Version Size Action
      UM1870
      BlueNRG-MS development kits
      4.0
      6.86 MB
      PDF
      UM1870

      BlueNRG-MS development kits

Hardware Resources

    • Description Version Size Action
      STEVAL-IDB005V1D gerber files 1.0
      1.03 MB
      ZIP

      STEVAL-IDB005V1D gerber files

    • Description Version Size Action
      STEVAL-IDB005V1D BOM 1.0
      48.55 KB
      PDF

      STEVAL-IDB005V1D BOM

    • Description Version Size Action
      STEVAL-IDB005V1D schematic 1.0
      52.84 KB
      PDF

      STEVAL-IDB005V1D schematic

Legal

    • Description Version Size Action
      Terms of use 1.7
      57.54 KB
      PDF

      Terms of use

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-IDB005V1D
Active
CARD Industrial Ecopack2 -

STEVAL-IDB005V1D

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
