STEVAL-IFP030V1

Active

High speed digital input current limiter evaluation board based on SCLT3-8BQ7

Download databrief
Overview
Sample & Buy
Solutions
Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

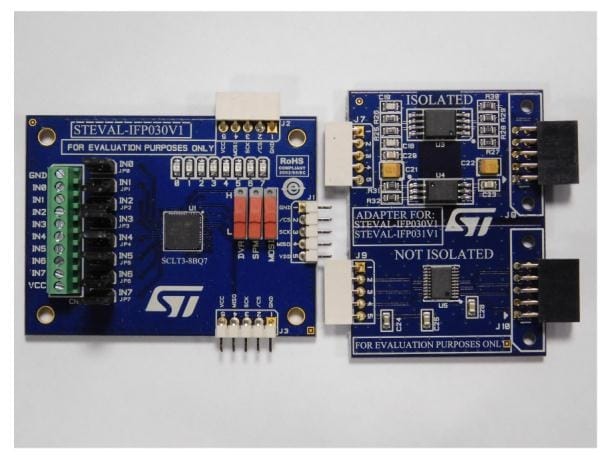

  • This evaluation board implements an 8-line protected digital input termination with serialized state transfer for Programmable Logic Controllers. It is based on the SCLT3-8BQ7 device.

    The SCLT3-8BQ7 enhances the I/O module density by cutting the dissipation (78 mW per input) and reducing the opto-transistor count. An adjustable digital filter and an LED driver are embedded in each input section. Its 2 MHz SPI peripheral output serializes the input state transfer to the I/O module controller.
    The STEVAL-IFP030V1 evaluation board illustrates the flexibility of the SCTL3-8BQ7 with: 8/16-bit mode with parity check, temperature and voltage alarms; daisy-chain capability; adjustable digital minimal filter time (20 µs /160 µs).
    The STEVAL-IFP030V1 evaluation board can be chained with many other STEVAL-IFP030V1 evaluation boards.
    The adapter board can be placed between the first STEVAL-IFP030V1 evaluation board of the chain and the STEVAL-PCC009V2 STM32x microcontroller evaluation board. This adapter provides 2 buses: isolated and non-isolated.

    Key Features

    • 8 inputs - 8-bit SPI output
    • High side input with common ground
    • 5 V voltage regulator
    • Package: QFN 7 x 7 - 48L
    • 30 V reverse polarity capable
    • Adjustable current limiters
    • LED output for visual status
    • Optional 16-bit mode with parity check, temperature and voltage alarms
    • Daisy chain capable
    • Input digital filter with adjustable 20 to 160 µs delay
    • Power dissipation 78 mW per channel
    • RoHS compliant
