STEVAL-IHM041V1

Active
Design Win

Universal motor driver with speed control based on the STM8 and Triac (US version)

Download datasheet Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

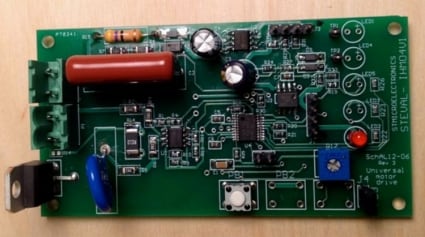

The STEVAL-IHM041V1 demonstration board is a Triac-based phase angle control for universal motor speed control using an STM8S103F3P6, 8-bit microcontroller, to set the conduction angle of the Triac. The STEVAL-IHM041V1 demonstration board may be operated in either open loop mode or in closed loop speed control mode, with an AC tach, Hall sensor or opto-sensor feedback.
The open loop mode may also be used as a lamp dimmer.
The STEVAL-IHM041V1 demonstration board is designed to operate from a 120 V/60 Hz mains, but may be easily modified to operate on other mains voltages by changing components in the power supply and motor voltage sensing circuits. Suggested component values for 230 V/50 Hz mains voltages are shown in the relevant bill of materials.
  • All features

    • Input voltage 120 V/60 Hz
    • Motor current: 7 A RMS
    • Phase control for universal motor drive
    • Open loop or closed loop speed regulation
    • Voltage and current sensing, for sensorless operation (optional)
    • Debug outputs
    • AC tach, Hall sensor or opto-sensor for speed feedback
    • RoHS compliant

You might also like...

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STSW-IHM041V1

      Active

      STEVAL-IHM041V1 firmware

      Evaluation Tool Software ST
      STSW-IHM041V1

      Description:

      STEVAL-IHM041V1 firmware

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-IHM041V1
Active
CARD Industrial Ecopack2 -

STEVAL-IHM041V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
