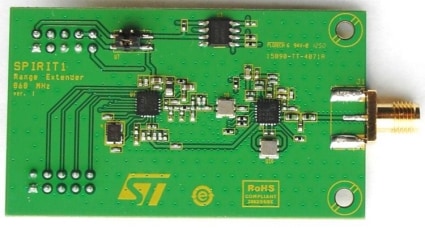

The STEVAL-IKR001V8D demonstration board is based on the SPIRIT1, a sub GHz low power, low data rate transceiver suitable for ISM bands and wireless M-BUS systems.
The STEVAL-IKR001V8D includes an external power amplifier from SkyWorks®, which allows the application to reach +27 dBm (500 mW) output power.
Key Features
- SPIRIT1 low power sub GHz transceiver in a standalone RF module tuned for 868 MHz band with external power amplifier
- Associated SPIRIT1 development kit, including documentation, firmware for STM32L and GUI
- Suitable for wireless M-BUS systems
- Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK
- Air data rate from 1 to 500 kbps
- TCXO for narrow band requirements
- Max POUT +27 dBm
- Excellent receiver sensitivity (up to -123 dBm)
- TX power consumption @ +27 dBm: 350 mA
- SAW filter in reception path to prevent interference from out-of-band signals
- SkyWorks®SEXXXXSL power amplifier
- Low duty cycle RX/TX operation mode
- Automatic acknowledgment, re-transmission and timeout protocol engine
- AES 128-bit encryption co-processor
- SPI interface for microcontroller
- RoHS compliant
Sample & Buy
| Part Number | Core Product | Marketing Status | ECCN (US) | Country of Origin | Budgetary Price (US$)*/Qty | Order from ST | Order from Distributors |
|---|---|---|---|---|---|---|---|
| STEVAL-IKR001V8D | SPIRIT1 | Active | 5A992C | ITALY | 236.0 / 1 | No availability of distributors reported, please contact our sales office |
STEVAL-IKR001V8D
Core Product
SPIRIT1Marketing Status
ActiveBudgetary Price (US$)*/Qty
236.0 / 1(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
Evaluation Tools
-
-
Picture Part number Manufacturer Description
STEVAL-IKR002V1 ST SPIRIT1 - Low Data Rate Transceiver - 169 MHz - FULL KIT
STEVAL-IKR002V1D ST SPIRIT1 - Low Data Rate Transceiver - 169 MHz - DAUGHTER BOARD
STEVAL-IKR002V2D ST SPIRIT1 - Low Data Rate Transceiver - 315 MHz - DAUGHTER BOARD
STEVAL-IKR002V3 ST SPIRIT1 - Low Data Rate Transceiver - 433 MHz - FULL KIT
STEVAL-IKR002V3D ST SPIRIT1 - Low Data Rate Transceiver - 433 MHz - DAUGHTER BOARD
STEVAL-IKR002V4 ST SPIRIT1 - Low Data Rate Transceiver - 868 MHz - FULL KIT
STEVAL-IKR002V4B ST SPIRIT1 - low data rate transceiver - 868 MHz - DAUGHTER BOARD - integrated balun
STEVAL-IKR002V4D ST SPIRIT1 - Low Data Rate Transceiver - 868 MHz - DAUGHTER BOARD
STEVAL-IKR002V5 ST SPIRIT1 - Low Data Rate Transceiver - 915 MHz - FULL KIT
STEVAL-IKR002V5D ST SPIRIT1 - Low Data Rate Transceiver - 915 MHz - DAUGHTER BOARD
STEVAL-IKR002V7D ST SPIRIT1 - Low Data Rate Transceiver - 169 MHz - DAUGHTER BOARD - range extender Part NumberSPIRIT1 - Low Data Rate Transceiver - 169 MHz - FULL KIT
SPIRIT1 - Low Data Rate Transceiver - 169 MHz - DAUGHTER BOARD
SPIRIT1 - Low Data Rate Transceiver - 315 MHz - DAUGHTER BOARD
SPIRIT1 - Low Data Rate Transceiver - 433 MHz - FULL KIT
SPIRIT1 - Low Data Rate Transceiver - 433 MHz - DAUGHTER BOARD
SPIRIT1 - Low Data Rate Transceiver - 868 MHz - FULL KIT
SPIRIT1 - low data rate transceiver - 868 MHz - DAUGHTER BOARD - integrated balun
SPIRIT1 - Low Data Rate Transceiver - 868 MHz - DAUGHTER BOARD
SPIRIT1 - Low Data Rate Transceiver - 915 MHz - FULL KIT
SPIRIT1 - Low Data Rate Transceiver - 915 MHz - DAUGHTER BOARD
SPIRIT1 - Low Data Rate Transceiver - 169 MHz - DAUGHTER BOARD - range extender
-
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Material Declaration** |
|---|---|---|---|---|---|---|
| STEVAL-IKR001V8D | Active | CARD | Industrial | Ecopack2 | - | |
STEVAL-IKR001V8D
Package:
CARDMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
