STEVAL-IKR002V2D

Active
Design Win

SPIRIT1 - Low Data Rate Transceiver - 315 MHz - DAUGHTER BOARD

Download databrief
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

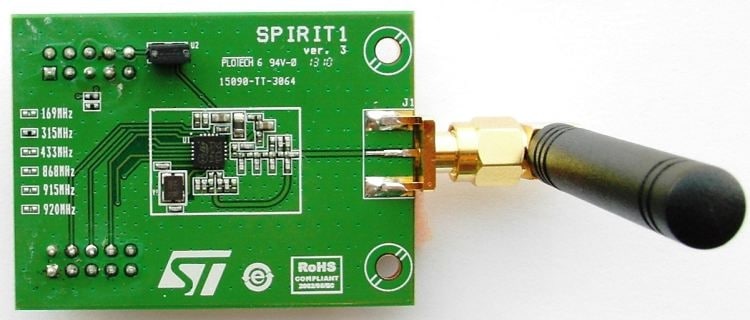

The STEVAL-IKR002V2D product evaluation board is based on the SPIRIT1, a very low-power RF transceiver intended for RF wireless applications in the sub-1 GHz frequency band.
  • All features

    • SPIRIT1 low power sub GHz transceiver in a standalone RF module tuned for 315 MHz
    • Modulation schemes: 2-FSK, GFSK, MSK,GMSK, OOK, and ASK
    • Programmable air data rate: from 1 to 500 kbps
    • Very low power consumption: 9.2 mA RX and 22 mA TX at +11 dBm
    • Excellent receiver sensitivity (down to -110 dBm)
    • Low duty cycle RX/TX operation mode
    • Automatic acknowledgment, retransmission, and timeout protocol engine
    • AES 128-bit encryption co-processor
    • SPI interface for microcontroller
    • RoHS compliant
