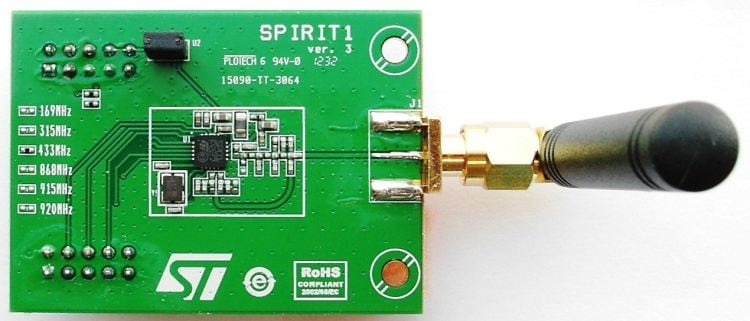

  • The STEVAL-IKR002V3D product evaluation board is based on the SPIRIT1, a very low-power RF transceiver intended for RF wireless applications in the sub 1 GHz frequency band.

    Key Features

    • SPIRIT1 low power sub GHz transceiver in a standalone RF module tuned for 433 MHz
    • Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK
    • Suitable for wireless M-BUS applications
    • Programmable air data rate: from 1 to 500 kbps
    • Very low power consumption: 9.2mA RX and 19.5 mA TX at +11 dBm
    • Excellent receiver sensitivity (down to -120 dBm)
    • Low duty cycle RX/TX operation mode
    • Automatic acknowledgment, retransmission, and timeout protocol engine
    • AES 128-bit encryption co-processor
    • SPI interface for microcontroller
    • RoHS compliant
